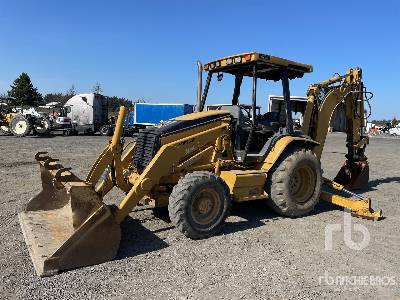

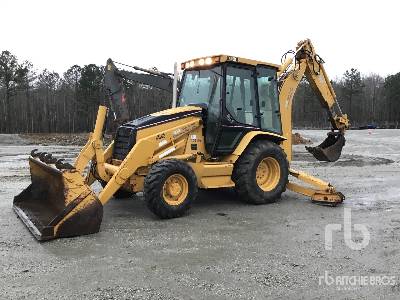

Caterpillar 420D IT Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
11.86ft in
K
Reach From Swivel - Std
18.54ft in
L
Dig Depth - Std
14.41ft in
M
Reach At Load Height - Std
2.83ft in
Bucket Dig Force - Std
14712lb
Bucket Dig Force - Ext
14586lb
Reach From Swivel - Ext
21.9ft in
Dig Depth - Ext
18.08ft in
Reach At Load Height - Ext
2.47ft in
Load Height - Ext
13.7ft in
Dimensions
A
Transport Length
22.89ft in
B
Transport Width
7.72ft in
C
Transport Height
11.77ft in
D
Wheelbase
6.89ft in
E
Ground Clearance
0.98ft in
Height To Top Of Suspended Cab
9.09ft in
Loader
G
Clearance At Max Dump Height
8.35ft in
H
Reach At Max Dump Height
2.74ft in
I
Dig Depth
5.32in
Lift Capacity At Full Height
6384.59lb
Bucket Capacity
1.26yd3
Bucket Width
89.06in
Bucket Breakout Force
10138.89lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3054T
Net Power
85hp
Gross Power
88hp
Power Measured @
2200rpm
Displacement
244.1cu in
Operational
Fuel Capacity
33.9gal
Operating Weight 4wd
15763.1lb
Turning Radius
17.6ft in
Tire Size Front - 2wd / 4wd
11Lx16,12PR/12.5 / 80x18,10PR
Rear Tires Size 2wd/4wd
19.5x24,10PR / 19.5L24,10PR
Transmission
Transmission Type
power shuttle
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
20.4mph
Max Speed Reverse
20.4mph
Hydraulic
Pump Type
LSPC, closed center
Pump Flow Capacity
43.1gal/min
Relief Valve Pressure
3300.2psi
