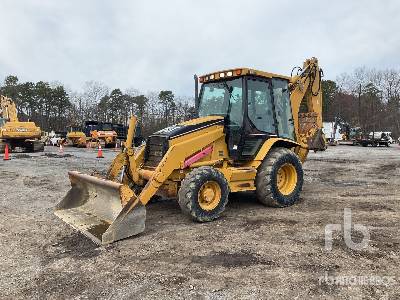

Caterpillar 416D Loader Backhoe
Dimensions
Backhoe
Load Height - Std
11.86ft in
Reach From Swivel - Std
18.54ft in
Dig Depth - Std
14.41ft in
Reach At Load Height - Std
5.69ft in
Loading Reach - Standard
5.8ft in
Bucket Dig Force - Standard
11702lb
Bucket Dig Force - Std
11702lb
Bucket Rotation
205degrees
Dig Depth - Standard
14.5ft in
E-Stick Extended (1)
18.11ft in
E-Stick Extended (2)
21.11ft in
E-Stick Extended (3)
11599lb
E-Stick Extended (4)
5661lb
E-Stick Extended (5)
2912lb
E-Stick Retracted (1)
14.8ft in
E-Stick Retracted (2)
18.9ft in
E-Stick Retracted (3)
11599lb
E-Stick Retracted (4)
7693lb
E-Stick Retracted (5)
4279lb
Loading Height - Standard
11.1ft in
Reach From Swing Pivot - Standard
18.61ft in
Stick Dig Force - Standard
7841lb
Stick Lift At 2440 Mm (8 Ft) - Standard
4638lb
Dimensions
Transport Length
22.8ft in
Transport Width
7.72ft in
Transport Height
11.77ft in
Wheelbase
6.89ft in
Ground Clearance
0.98ft in
Height To Top Of Suspended Cab
9.09ft in
Loader
Clearance At Max Dump Height
8.6ft in
Reach At Max Dump Height
2.48ft in
Dig Depth
5.32in
Bucket Breakout Force
8980lb
Bucket Capacity
1yd3
Bucket Width
89.06in
Bucket Width - General Purpose
89 ft
Dig Depth - Single Tilt
5in
Lift Capacity At Full Height
5452.04lb
Bucket Breakout Force - Single Tilt
8524lb
Dump Height At Maximum Angle - Single Tilt
8.4ft in
Dump Reach At Maximum Angle - Single Tilt
2.9ft in
Lift Capacity At Full Height - Single Tilt
5292lb
Bucket Capacity - General Purpose
1.25yd3
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3054B DI
Net Power
74hp
Gross Power
77hp
Power Measured @
2200rpm
Displacement
268cu in
Bore
4.2in
Stroke
5in
Net Power - Iso 9249
75hp
Net Power - Sae J1349
74hp
Gross Power - Sae J1995
78hp
Net Power - Eec 80/1269
75hp
Net Torque Rise - 1,400 Rpm - Standard
27 %
Engine Model - Standard
Cat 3054C DINA
Net Peak Torque - 1400 Rpm - Standard - Sae J1349
219lb ft
Net Power (Optional) - Iso 9249
81hp
Net Power (Optional) - Eec 80/1269
81hp
Net Power (Optional) - Din 70020
78 PS
Engine Model - Optional
Cat 3054C DIT
Gross Power - Optional - Sae J1995
85hp
Net Peak Torque - 1400 Rpm - Optional - Sae J1349
256lb ft
Net Torque Rise - 1,400 Rpm - Optional
34 %
Operational
Operating Weight 4wd
15211.9lb
Fuel Capacity
33.9gal
Turning Radius
17.6ft in
Tire Size Front - 2wd / 4wd
11Lx16,12PR/12.5 / 80x18,10PR
Rear Tires Size 2wd/4wd
19.5x24,10PR / 19.5L24,10PR
Power Train
Power Shuttle Transmission - Forward 1st
3.6mph
Forward - 2nd
5.8mph
Forward - 3rd
12mph
Forward - 4th
20.4mph
Power Shuttle Transmission - Reverse 1st
3.6mph
Reverse - 2nd
5.8mph
Reverse - 3rd
12mph
Reverse - 4th
20.4mph
Transmission
Transmission Type
power shuttle
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
20.4mph
Max Speed Reverse
20.4mph
Weights
Operating Weight - Maximum
21605lb
Operating Weight - Nominal
15257lb
Counterweights - Option 1
320lb
Tires
Front 2wd Standard Size
11L X 16
Standard Ply (1)
12
Front 4wd Standard Size
12.5/80 X 18
Standard Ply (2)
10
Rear - 4wd Standard Size
340/80 X R18
Hydraulic
Pump Type
LSPC, closed center
Pump Flow Capacity
36.8gal/min
Relief Valve Pressure
3002.3psi
Hydraulic System
Pump Type
Variable flow, axial piston
Circuit Type
Load-sensing, closed-center
Pump Capacity At 2,200 Rpm
37 gal/min
System Pressure
3000 psi
Steering Type
Front wheel
Power Steering
Hydrostatic
4wd Cylinder - Bore
2.56 in
Brake System
Inboard/ oil-immersed
Stroke (1)
8.8in
Stroke (2)
8.3in
2wd Cylinder - Bore
2.8in
Rod Diameter (1)
1.8in
Rod Diameter (2)
1.5in
Standards
Cab - Rops
SAE J397 SAE J1040 May 1994 ISO 3741 1994
Brakes
SAE J1473 October 1990 ISO 3450 1996
Cab - Sound
ANSI/SAE J1166 Oct 98 is 78.5 dB(A)
Exterior Sound
SAE J88 April 95 is 73.0 dB(A)
Axle Ratings
Front Axle (4wd) - Static
27029lb
Rear Axle - Static
61233lb
Front Axle (2wd) - Static
30319lb
Dynamic (1)
6983lb
Dynamic (2)
20418lb
Service Refill
Cooling System - A/C
4.2gal
Cooling System - High-Ambient
4.4gal
Fuel Tank
34gal
Engine Oil - With Filter
2gal
Transmission - Torque Converter - Power Shuttle - 4wd
4.8gal
Rear Axle
6.4gal
Front Axle (4wd)
2gal
Front Axle - Planetaries
0.2gal
Hydraulic System
21gal
Hydraulic Tank
10gal
Transmission - Torque Converter - Power Shuttle - 2wd
4gal
Operating Specifications - Backhoe
Turning Circle - Outside - Front Wheels
26.4ft in
Turning Circle - Outside, Widest Loading Bucket
34.1ft in
