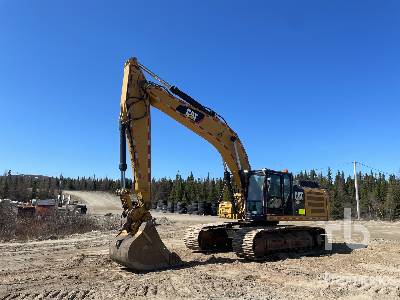

Caterpillar 374DL Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
43.41ft in
C
Shipping Height Of Unit
16.25ft in
J
Max Loading Height
29.5ft in
L
Max Vertical Wall Digging Depth
27.73ft in
M
Max Digging Depth
31.7ft in
Bucket Digging Force - Iso
76300.15lb
Maximum Reach At Ground Level
46.69ft in
Boom/Stick Option (Hex) 1
Boom - 7.8 m, 2.57 ft in / Stick - R4.67 m (15.4 ft in )
Bucket Digging Force - Sae
66880.66lb
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
43.67ft in
C
Shipping Height Of Unit
15.16ft in
J
Max Loading Height
28.35ft in
L
Max Vertical Wall Digging Depth
25.43ft in
M
Max Digging Depth
29.99ft in
Boom/Stick Option (Hex) 2
Boom - 7.8 m, 2.57 ft in / Stick - R4.15 m , 13.7 ft in
Bucket Digging Force - Iso
76300.15lb
Bucket Digging Force - Sae
66880.66lb
Maximum Reach At Ground Level
538.98in
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
43.71ft in
J
Max Loading Height
27.6ft in
C
Shipping Height Of Unit
14.7ft in
K
Max Reach Along Ground
43.21ft in
L
Max Vertical Wall Digging Depth
23.13ft in
M
Max Digging Depth
28.19ft in
Bucket Digging Force - Iso
76120.31lb
Bucket Digging Force - Sae
66745.77lb
Boom/Stick Option (Hex) 3
Boom - 7.8 m, 2.57 ft in / Stick - R3.6 m , 11.10 ft in
Dimensions
E
Ground Clearance
2.76ft in
H
Tail Swing Radius
13.18ft in
F
Track Gauge
9.03ft in
Transport Width
11.6ft in
Cab Height
139.38in
Track Length
231.11in
Undercarriage
Number Of Shoes Per Side
47
Number Of Carrier Rollers Per Side
3
Max Travel Speed
2.55mph
Drawbar Pull
110718.4lb
Number Of Track Rollers Per Side
8
Specifications
Engine
Engine Make
Cat
Engine Model
C15 ACERT
Net Power
476.1hp
Displacement
927.6cu in
Bore
5.4in
Stroke
6.8in
Capacities
Swing Drive
3.2gal
Fuel Tank
247.1gal
Hydraulic Tank
95.2gal
Cooling System
25.1gal
Final Drive
4gal
Hydraulic System
186.3gal
Engine Oil
17.2gal
Operational
Operating Weight
156819.3lb
Swing Mechanism
Swing Speed
6.4rpm
Swing Torque
158428lb ft
