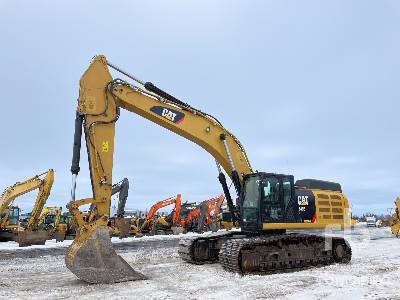

Caterpillar 349E L Hydraulic Excavator

Caterpillar 349E L Hydraulic Excavator Specs front
Caterpillar 349E L Hydraulic Excavator Specs front
Caterpillar 349E L Hydraulic Excavator Specs side
Caterpillar 349E L Hydraulic Excavator Specs side
Caterpillar 349E L Hydraulic Excavator Specs extended
Caterpillar 349E L Hydraulic Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

40.62 ft in

C

Shipping Height of Unit

11.98 ft in

I

Max Cutting Height

36.62 ft in

J

Max Loading Height

25.89 ft in

K

Max Reach Along Ground

42.46 ft in

L

Max Vertical Wall Digging Depth

21.26 ft in

M

Max Digging Depth

29.24 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

39.01 ft in

C

Shipping Height of Unit

11.98 ft in

I

Max Cutting Height

35.21 ft in

J

Max Loading Height

24.45 ft in

K

Max Reach Along Ground

39.77 ft in

L

Max Vertical Wall Digging Depth

26.42 ft in

M

Max Digging Depth

26.84 ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

38.78 ft in

C

Shipping Height of Unit

11.65 ft in

I

Max Cutting Height

35.47 ft in

J

Max Loading Height

24.48 ft in

K

Max Reach Along Ground

38.42 ft in

L

Max Vertical Wall Digging Depth

18.9 ft in

M

Max Digging Depth

25.04 ft in

Dimensions

D

Length of Track on Ground

17.62 ft in

E

Ground Clearance

1.68 ft in

G

Height to Top of Cab

10.57 ft in

H

Tail Swing Radius

12.34 ft in

Undercarriage

F

Track Gauge

8.99 ft in

N

Shoe Size

35.44 in


Specifications

Engine

Engine Make

2236

Engine Model

C13 ACERT

Net Power

396 hp

Displacement

762.8 cu in

Operational

Operating Weight

50000 lb

Fuel Capacity

190.3 gal

Cooling System Fluid Capacity

13.3 gal

Hydraulic System Fluid Capacity

150.6 gal

Engine Oil Capacity

11.4 gal

Swing Drive Fluid Capacity

2.7 gal

Hydraulic System Relief Valve Pressure

5076 psi

Hydraulic Pump Flow Capacity

203 gal/min

Swing Mechanism

Swing Speed

8.7 rpm

Swing Torque

109500 lb ft

Undercarriage

Number of Shoes per Side

52

Shoe Size

35.5 in

Max Travel Speed

4.7 mph

Drawbar Pull

75311 lb

Track Gauge

9 ft in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom (24\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'2\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\') Stick (14\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'1\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\')

Shipping Height of Unit

12 ft in

Shipping Length of Unit

40.7 ft in

Max Digging Depth

29.3 ft in

Max Reach Along Ground

42.5 ft in

Max Cutting Height

36.7 ft in

Max Loading Height

25.9 ft in

Max Vertical Wall Digging Depth

21.3 ft in

Boom/Stick Option (HEX) 2

Shipping Height of Unit

12 ft in

Shipping Length of Unit

39.1 ft in

Max Digging Depth

26.9 ft in

Max Reach Along Ground

39.8 ft in

Max Cutting Height

35.3 ft in

Max Loading Height

24.5 ft in

Max Vertical Wall Digging Depth

26.5 ft in

Boom/Stick Option (HEX) 3

Shipping Height of Unit

11.7 ft in

Shipping Length of Unit

38.8 ft in

Max Digging Depth

25.1 ft in

Max Reach Along Ground

38.5 ft in

Max Cutting Height

35.5 ft in

Max Loading Height

24.5 ft in

Max Vertical Wall Digging Depth

18.9 ft in

Dimensions

Height to Top of Cab

10.6 ft in

Ground Clearance

1.7 ft in

Removal Counterweight Clearance

4.2 ft in

Tail Swing Radius

12.4 ft in

Length of Track on Ground

17.7 ft in
