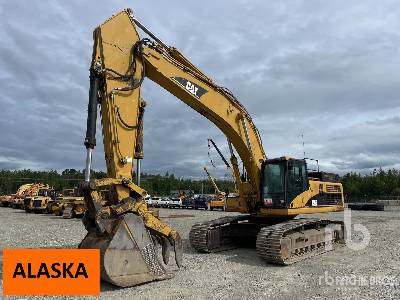

Caterpillar 345C L Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

39.08 ft in

C

Shipping Height of Unit

12.33 ft in

J

Max Loading Height

24.92 ft in

K

Max Reach Along Ground

41.08 ft in

L

Max Vertical Wall Digging Depth

19.43 ft in

M

Max Digging Depth

28.25 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

39.08 ft in

C

Shipping Height of Unit

11.92 ft in

J

Max Loading Height

24.5 ft in

K

Max Reach Along Ground

39.83 ft in

L

Max Vertical Wall Digging Depth

17.68 ft in

M

Max Digging Depth

26.92 ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

38.83 ft in

C

Shipping Height of Unit

10.92 ft in

J

Max Loading Height

24.33 ft in

K

Max Reach Along Ground

38.42 ft in

L

Max Vertical Wall Digging Depth

17.08 ft in

M

Max Digging Depth

25.08 ft in

Boom/Stick Option (HEX) 4

A

Shipping Length of Unit

38.92 ft in

C

Shipping Height of Unit

11.58 ft in

J

Max Loading Height

23.75 ft in

K

Max Reach Along Ground

37.08 ft in

M

Max Digging Depth

23.58 ft in

Boom/Stick Option (HEX) 5

A

Shipping Length of Unit

40.67 ft in

C

Shipping Height of Unit

11.75 ft in

J

Max Loading Height

26 ft in

K

Max Reach Along Ground

42.5 ft in

M

Max Digging Depth

29.25 ft in

Boom/Stick Option (HEX) 6

A

Shipping Length of Unit

40.75 ft in

C

Shipping Height of Unit

11.5 ft in

J

Max Loading Height

25.58 ft in

K

Max Reach Along Ground

41.33 ft in

M

Max Digging Depth

27.92 ft in

Dimensions

B

Width to Outside of Tracks

11.42 ft in

D

Length of Track on Ground

14.33 ft in

E

Ground Clearance

1.67 ft in

G

Height to Top of Cab

10.5 ft in

H

Tail Swing Radius

12.33 ft in

Undercarriage

F

Track Gauge

9 ft in

N

Shoe Size

30 in


Specifications

Engine

Cylinders

6

Number of Cylinders

6

Engine Make

2236

Engine Model

C13 ACERT

Net Power

345 hp

Power Measured @

1800 rpm

Displacement

763 cu in

Bore

5.1 in

Stroke

6.2 in

Net Power - ISO 9249

345 hp

Net Power - SAE J1349

345 hp

Engine Model

Cat C13 ACERT

Net Power - EEC 80/1269

345 hp

Net Flywheel Power

345 hp

Operational

Operating Weight

99150 lb

Fuel Capacity

186 gal

Cooling System Fluid Capacity

16 gal

Hydraulic System Fluid Capacity

150 gal

Engine Oil Capacity

11 gal

Swing Drive Fluid Capacity

2.6 gal

Hydraulic System Relief Valve Pressure

5080 psi

Hydraulic Pump Flow Capacity

190 gal/min

Swing Mechanism

Swing Speed

8.6 rpm

Swing Torque

109560 lb ft

Undercarriage

Number of Shoes per Side

52

Shoe Size

30 in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

9

Max Travel Speed

2.7 mph

Drawbar Pull

75920 lb

Track Gauge

9 ft in

Weights

Operating Weight

99150 lb

Operating Weight - Long Undercarriage

99150 lb

Operating Weight - Standard Undercarriage

99150 lb

Buckets

Reference Bucket Capacity

2.5 yd3

Maximum Bucket Capacity

4.6 yd3

Hydraulic System

Pilot System - Maximum Flow

11 gal/min

Pilot System - Maximum Pressure

596 psi

Maximum Pressure - Travel

5080 psi

Maximum Pressure - Swing

4550 psi

Boom Cylinder - Bore

6.3 in

Boom Cylinder - Stroke

62 in

Stick Cylinder - Bore

7.5 in

Main System - Maximum Flow - Total

190 gal/min

TB Family Bucket Cylinder - Stroke

53.4 in

TB Family Bucket Cylinder - Bore

6.3 in

UB Family Bucket Cylinder - Bore

6.7 in

UB Family Bucket Cylinder - Stroke

55 in

Maximum Pressure - Equipment - Heavy Lift

5511 psi

Maximum Pressure - Equipment - Normal

5080 psi

Main Normal Relief Pressure

5080 psi

Stick Cylinder - Stroke - For Long Reach and Reach Fronts

70 in

Stick Cylinder - Stroke - For Mass Excavation Fronts

69.2 in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

R4.3TB-Reach Boom

Shipping Height of Unit

12.4 ft in

Shipping Length of Unit

39.1 ft in

Max Digging Depth

28.3 ft in

Max Reach Along Ground

41.1 ft in

Max Loading Height

25 ft in

Max Vertical Wall Digging Depth

19.5 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

R3.9TB--Reach Boom

Shipping Height of Unit

12 ft in

Shipping Length of Unit

39.1 ft in

Max Digging Depth

27 ft in

Max Reach Along Ground

39.9 ft in

Max Loading Height

24.5 ft in

Max Vertical Wall Digging Depth

17.7 ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

R3.5TB-Reach Boom

Shipping Height of Unit

11 ft in

Shipping Length of Unit

38.9 ft in

Max Digging Depth

25.1 ft in

Max Reach Along Ground

38.5 ft in

Max Loading Height

24.4 ft in

Max Vertical Wall Digging Depth

17.1 ft in

Boom/Stick Option (HEX) 4

Boom/Stick Option (HEX) 4

R2.9TB-Mass Excavation Boom

Shipping Height of Unit

11.6 ft in

Shipping Length of Unit

39 ft in

Max Digging Depth

23.6 ft in

Max Reach Along Ground

37.1 ft in

Max Loading Height

23.8 ft in

Max Vertical Wall Dig Depth

15.8 ft in

Boom/Stick Option (HEX) 5

Boom/Stick Option (HEX) 5

R4.3TB-Long Reach Boom

Shipping Height of Unit

11.8 ft in

Shipping Length of Unit

40.7 ft in

Max Digging Depth

29.3 ft in

Max Reach Along Ground

42.5 ft in

Max Loading Height

26 ft in

Max Vertical Wall Dig Depth

19.6 ft in

Boom/Stick Option (HEX) 6

Boom/Stick Option (HEX) 6

R3.9TB-Long Reach Boom

Shipping Height of Unit

11.5 ft in

Shipping Length of Unit

40.8 ft in

Max Digging Depth

28 ft in

Max Reach Along Ground

41.4 ft in

Max Loading Height

25.6 ft in

Max Vertical Wall Dig Depth

17.9 ft in

Dimensions

Width to Outside of Tracks

11.5 ft in

Height to Top of Cab

10.5 ft in

Ground Clearance

1.7 ft in

Removal Counterweight Clearance

4.4 ft in

Tail Swing Radius

12.4 ft in

Length of Track on Ground

14.4 ft in

Shipping Height

12.4 ft in

Operating Specifications

Maximum Reach - Ground Level

42.5 ft in

Maximum Bucket Capacity

5 yd3

Maximum Digging Depth

29.3 ft in

Bucket Digging Force - Normal

39300 lb

Nominal Bucket Weight

3880 lb

Service Refill Capacities

Cooling System

16 gal

Final Drive - Each

4 gal

Hydraulic Tank

64 gal

Hydraulic System - Including Tank

150 gal

Engine Oil

11 gal

Fuel Tank Capacity

186 gal

Swing Drive - Each

2.6 gal

Standards

Brakes

SAE J1026 APR90

Cab/FOGS

SAE J1356 FEB 88 and ISO 10262-1998

Sound Performance

Performance

ANSI/SAE J1166 MAY90 Meets OSHA and MSHA Requirements

Track

Number of Carrier Rollers - Each Side

2

Number of Track Rollers - Each Side - Long Undercarriage

9

Number of Shoes - Each Side - Long Undercarriage

52

Drive

Maximum Travel Speed

2.7 mph

Maximum Drawbar Pull - Long Undercarriage

75920 lb
