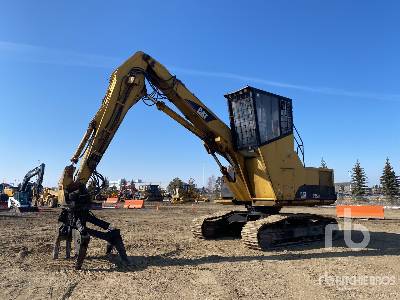

Caterpillar 320C FM Log Loader
Units
Dimensions
Boom/Stick Option (Lgl) 1
A
Shipping Length
44.69ft in
C
Shipping Height
10.21ft in
I
Max Height
41.44ft in
J
Max Reach At Ground Level
36.03ft in
K
Max Depth Below Ground
13.13ft in
Dimensions
B
Overall Width
10.86ft in
D
Length Of Track On Ground
11.98ft in
E
Ground Clearance
2.14ft in
H
Tail Swing Radius
8.93ft in
G
Height To Top Of Cab
14.93ft in
Undercarriage
F
Track Gauge
8.5ft in
Shoe Size
27.56in
Specifications
Engine
Engine Make
2236
Engine Model
3066T Diesel engine
Net Power
143hp
Net Torque
138lb ft
Displacement
388.8cu in
Operational
Fuel Capacity
105.7gal
Cooling System Fluid Capacity
8gal
Engine Oil Capacity
8gal
Hydraulic System Fluid Capacity
63.5gal
Operating Voltage
24V
Alternator Supplied Amperage
50amps
Swing Mechanism
Swing Speed
11.5rpm
Swing Torque
45581.4lb ft
Hydraulic
Pump Flow Capacity
54.2gal/min
Relief Valve Pressure
4974.8psi
