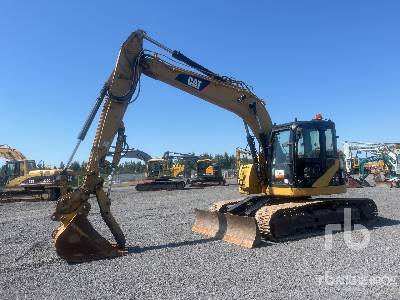

Caterpillar 314D CR Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
23.86ft in
C
Shipping Height Of Unit
9.55ft in
I
Max Cutting Height
30.52ft in
J
Max Loading Height
22.54ft in
K
Max Reach Along Ground
26.84ft in
L
Max Vertical Wall Digging Depth
16.11ft in
M
Max Digging Depth
17.85ft in
Boom/Stick Option (Hex) 1
Boom 4650mm (15\' 3\'\') / Stick 2500mm (8\\\\\\\\\\\\\\\' 2\\\\\\\\\\\\\\\'\\\\\\\\\\\\\\\')
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
24.25ft in
I
Max Cutting Height
31.07ft in
C
Shipping Height Of Unit
9.95ft in
J
Max Loading Height
23.1ft in
K
Max Reach Along Ground
27.7ft in
L
Max Vertical Wall Digging Depth
16.67ft in
M
Max Digging Depth
18.84ft in
Boom/Stick Option (Hex) 2
Boom 4650mm (15\' 3\'\') / Stick 2800mm (9\\\\\\\' 2\\\\\\\'\\\\\\\')
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
24.32ft in
I
Max Cutting Height
31.6ft in
J
Max Loading Height
6.76ft in
C
Shipping Height Of Unit
9.55ft in
K
Max Reach Along Ground
28.32ft in
L
Max Vertical Wall Digging Depth
17.33ft in
M
Max Digging Depth
19.49ft in
Boom/Stick Option (Hex) 3
Boom 4650mm (15\' 3\'\') / Stick 3000mm (9\\\\\\\' 10\\\\\\\'\\\\\\\')
Dimensions
E
Ground Clearance
1.42ft in
G
Height To Top Of Cab
8.96ft in
B
Width To Outside Of Tracks
8.17ft in
D
Length Of Track On Ground
9.13ft in
H
Tail Swing Radius
4.86ft in
Removal Counterweight Clearance
2.94ft in
Undercarriage
F
Track Gauge
6.53ft in
N
Shoe Size
19.69in
Ground Pressure
6.6psi
Specifications
Engine
Engine Make
2236
Engine Model
C4.2 ACERT
Net Power
90hp
Gross Power
97hp
Displacement
259.4cu in
Operational
Operating Weight
30864.8lb
Fuel Capacity
49.2gal
Cooling System Fluid Capacity
4.8gal
Hydraulic System Fluid Capacity
42.3gal
Engine Oil Capacity
5.1gal
Swing Drive Fluid Capacity
0.8gal
Hydraulic System Relief Valve Pressure
5076.4psi
Hydraulic Pump Flow Capacity
5.6gal/min
Swing Mechanism
Swing Torque
22825lb ft
Swing Speed
11.5rpm
Buckets
Reference Bucket Capacity
0.6yd3
Minimum Bucket Capacity
0.4yd3
Maximum Bucket Capacity
1yd3
