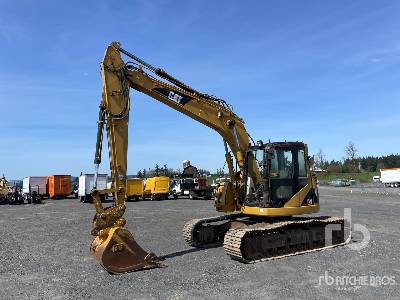

Caterpillar 314C LCR Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

24.4 ft in

I

Max Cutting Height

30.6 ft in

J

Max Loading Height

22.6 ft in

K

Max Reach Along Ground

26.1 ft in

L

Max Vertical Wall Digging Depth

16.11 ft in

M

Max Digging Depth

17.11 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

24.4 ft in

I

Max Cutting Height

21.7 ft in

J

Max Loading Height

23.7 ft in

K

Max Reach Along Ground

28.4 ft in

L

Max Vertical Wall Digging Depth

17.61 ft in

M

Max Digging Depth

19.61 ft in

Dimensions

B

Width to Outside of Tracks

8.5 ft in

D

Length of Track on Ground

11.5 ft in

E

Ground Clearance

1.6 ft in

G

Height to Top of Cab

9.31 ft in

H

Tail Swing Radius

4.1 ft in

Undercarriage

F

Track Gauge

6.53 ft in

N

Shoe Size

19.69 in


Specifications

Engine

Engine Make

2236

Engine Model

3064T

Gross Power

94 hp

Net Power

90 hp

Displacement

259 cu in

Operational

Operating Weight

32590 lb

Fuel Capacity

52.8 gal

Cooling System Fluid Capacity

4.6 gal

Hydraulic System Fluid Capacity

39.6 gal

Engine Oil Capacity

4.6 gal

Swing Drive Fluid Capacity

0.8 gal

Operating Voltage

24 V

Alternator Supplied Amperage

50 amps

Hydraulic System Relief Valve Pressure

4340 psi

Hydraulic Pump Flow Capacity

33.5 gal/min

Swing Mechanism

Swing Speed

12.6 rpm

Swing Torque

22790 lb ft

Undercarriage

Shoe Size

19.7 in

Ground Pressure

6.4 psi

Max Travel Speed

3.4 mph

Drawbar Pull

24730 lb

Track Gauge

6.6 ft in

Buckets

Reference Bucket Capacity

0.7 yd3

Minimum Bucket Capacity

0.4 yd3

Maximum Bucket Capacity

1 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 4.65m (15' 3") 2500mm (8' 2")Stick

Shipping Length of Unit

24.4 ft in

Max Digging Depth

17.2 ft in

Max Reach Along Ground

26.1 ft in

Max Cutting Height

30.6 ft in

Max Loading Height

22.6 ft in

Max Vertical Wall Digging Depth

16.1 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 4.65m (15' 3") 3000mm (9' 10" )Stick

Shipping Length of Unit

24.4 ft in

Max Digging Depth

19.6 ft in

Max Reach Along Ground

28.4 ft in

Max Cutting Height

21.7 ft in

Max Loading Height

23.7 ft in

Max Vertical Wall Digging Depth

17.6 ft in

Dimensions

Width to Outside of Tracks

8.5 ft in

Height to Top of Cab

9.3 ft in

Ground Clearance

1.6 ft in

Tail Swing Radius

4.1 ft in

Length of Track on Ground

11.5 ft in
