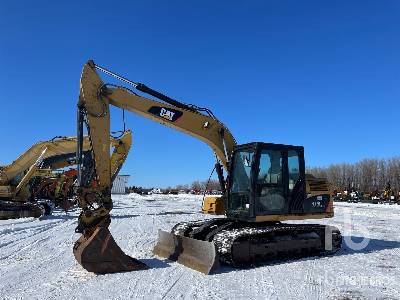

Caterpillar 312D Hydraulic Excavator

Caterpillar 312D Hydraulic Excavator Specs front
Caterpillar 312D Hydraulic Excavator Specs front
Caterpillar 312D Hydraulic Excavator Specs side
Caterpillar 312D Hydraulic Excavator Specs side
Caterpillar 312D Hydraulic Excavator Specs extended
Caterpillar 312D Hydraulic Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

24.97 ft in

C

Shipping Height of Unit

9.29 ft in

I

Max Cutting Height

27.83 ft in

J

Max Loading Height

20.02 ft in

K

Max Reach Along Ground

26.81 ft in

L

Max Vertical Wall Digging Depth

16.34 ft in

M

Max Digging Depth

18.18 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

24.91 ft in

C

Shipping Height of Unit

9.75 ft in

I

Max Cutting Height

28.15 ft in

J

Max Loading Height

20.38 ft in

K

Max Reach Along Ground

27.66 ft in

L

Max Vertical Wall Digging Depth

16.93 ft in

M

Max Digging Depth

19.17 ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

24.97 ft in

C

Shipping Height of Unit

9.29 ft in

I

Max Cutting Height

28.55 ft in

J

Max Loading Height

20.81 ft in

K

Max Reach Along Ground

28.29 ft in

L

Max Vertical Wall Digging Depth

17.59 ft in

M

Max Digging Depth

19.82 ft in

Dimensions

B

Width to Outside of Tracks

8.17 ft in

D

Length of Track on Ground

9.13 ft in

E

Ground Clearance

1.42 ft in

G

Height to Top of Cab

9.06 ft in

H

Tail Swing Radius

7.03 ft in

Undercarriage

F

Track Gauge

6.53 ft in

N

Shoe Size

19.69 in


Specifications

Engine

Engine Make

2236

Engine Model

C4.2 ACERT

Gross Power

97 hp

Net Power

90 hp

Displacement

259.4 cu in

Operational

Operating Weight

28483.8 lb

Fuel Capacity

66.1 gal

Cooling System Fluid Capacity

4.8 gal

Hydraulic System Fluid Capacity

42.8 gal

Engine Oil Capacity

5.2 gal

Swing Drive Fluid Capacity

0.8 gal

Hydraulic System Relief Valve Pressure

5076.4 psi

Hydraulic Pump Flow Capacity

33.6 gal/min

Swing Mechanism

Swing Speed

12.4 rpm

Swing Torque

22827.6 lb ft

Undercarriage

Shoe Size

19.7 in

Ground Pressure

6.1 psi

Max Travel Speed

3.5 mph

Drawbar Pull

25628.3 lb

Track Gauge

6.6 ft in

Buckets

Reference Bucket Capacity

0.7 yd3

Minimum Bucket Capacity

0.4 yd3

Maximum Bucket Capacity

1 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 5680mm (18\' 7\'\') / Stick 2500mm (8\\\\\\\' 2\\\\\\\'\\\\\\\')

Shipping Height of Unit

9.3 ft in

Shipping Length of Unit

25 ft in

Max Digging Depth

18.2 ft in

Max Reach Along Ground

26.9 ft in

Max Cutting Height

27.9 ft in

Max Loading Height

20.1 ft in

Max Vertical Wall Digging Depth

16.4 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 5680mm (18\' 7\'\') / Stick 2800mm (9\\\\\\\' 2\\\\\\\'\\\\\\\')

Shipping Height of Unit

9.8 ft in

Shipping Length of Unit

25 ft in

Max Digging Depth

19.2 ft in

Max Reach Along Ground

27.7 ft in

Max Cutting Height

28.2 ft in

Max Loading Height

20.4 ft in

Max Vertical Wall Digging Depth

17 ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

Boom 5680mm (18\' 7\'\') / Stick 3000mm (9\\\\\\\' 10\\\\\\\'\\\\\\\')

Shipping Height of Unit

9.3 ft in

Shipping Length of Unit

25 ft in

Max Digging Depth

19.9 ft in

Max Reach Along Ground

28.3 ft in

Max Cutting Height

28.6 ft in

Max Loading Height

20.9 ft in

Max Vertical Wall Digging Depth

17.6 ft in

Dimensions

Width to Outside of Tracks

8.2 ft in

Height to Top of Cab

9.1 ft in

Ground Clearance

1.5 ft in

Removal Counterweight Clearance

3.1 ft in

Tail Swing Radius

7.1 ft in

Length of Track on Ground

9.2 ft in
