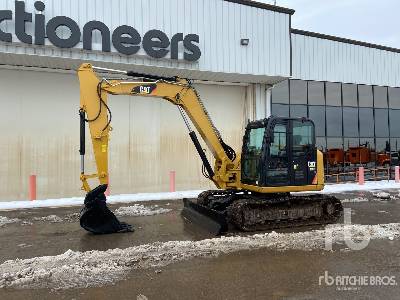

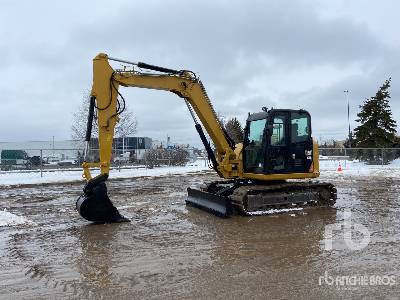

Caterpillar 308C CR Midi Excavator

Midi Excavator
Midi Excavator
Midi Excavator
Midi Excavator
Midi Excavator
Midi Excavator
MODEL.UNITS

Dimensions

Boom/Stick Option (Hex) 1

A

Shipping Length Of Unit

19.18ft in

C

Shipping Height Of Unit

8.58ft in

I

Max Cutting Height

24.25ft in

J

Max Loading Height

17.25ft in

K

Max Reach Along Ground

20.5ft in

L

Max Vertical Wall Digging Depth

11.08ft in

M

Max Digging Depth

13.58ft in

Boom/Stick Option (Hex) 1

Boom 3.7m (12'2") Stick 1665mm (5' 6")

Boom/Stick Option (Hex) 2

A

Shipping Length Of Unit

19.18ft in

C

Shipping Height Of Unit

9ft in

I

Max Cutting Height

25.58ft in

J

Max Loading Height

18.58ft in

K

Max Reach Along Ground

22.25ft in

M

Max Digging Depth

15.42ft in

L

Max Vertical Wall Digging Depth

13.5ft in

Boom/Stick Option (Hex) 2

Boom 3.7m Stick 2210mm (7" 3")

Dimensions

B

Width To Outside Of Tracks

7.58ft in

D

Length Of Track On Ground

7.5ft in

E

Ground Clearance

1.25ft in

G

Height To Top Of Cab

8.58ft in

H

Tail Swing Radius

4.25ft in

Undercarriage

N

Shoe Size

18in

F

Track Gauge

6.17ft in

Ground Pressure

4.7psi

Max Travel Speed

3.3mph


Specifications

Engine

Number Of Cylinders

4

Engine Make

2251

Engine Model

C 4M40E1

Gross Power

55hp

Net Power

54hp

Displacement

173cu in

Operational

Operating Weight

17730lb

Fuel Capacity

30.4gal

Cooling System Fluid Capacity

4gal

Hydraulic System Fluid Capacity

24.3gal

Engine Oil Capacity

2.6gal

Alternator Supplied Amperage

35amps

Hydraulic System Relief Valve Pressure

3980psi

Swing Mechanism

Swing Speed

11.5rpm

Swing Torque

11801lb ft

Buckets

Reference Bucket Capacity

0.5yd3

Minimum Bucket Capacity

0.2yd3

Maximum Bucket Capacity

0.5yd3
