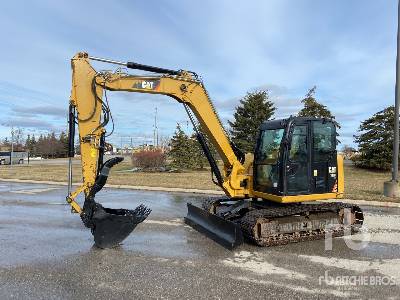

Caterpillar 307D Midi Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
18.71ft in
C
Shipping Height Of Unit
8.63ft in
I
Max Cutting Height
23.73ft in
J
Max Loading Height
17.1ft in
K
Max Reach Along Ground
20.18ft in
L
Max Vertical Wall Digging Depth
11.95ft in
M
Max Digging Depth
13.29ft in
Boom/Stick Option (Hex) 1
Standard stick
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
18.8ft in
C
Shipping Height Of Unit
8.63ft in
I
Max Cutting Height
25.07ft in
J
Max Loading Height
18.41ft in
K
Max Reach Along Ground
21.89ft in
M
Max Digging Depth
15.1ft in
L
Max Vertical Wall Digging Depth
13.69ft in
Boom/Stick Option (Hex) 2
Long stick
Dimensions
B
Width To Outside Of Tracks
7.52ft in
D
Length Of Track On Ground
6.96ft in
E
Ground Clearance
1.19ft in
G
Height To Top Of Cab
8.63ft in
H
Tail Swing Radius
5.75ft in
Removal Counterweight Clearance
2.5ft in
Undercarriage
N
Shoe Size
17.72in
F
Track Gauge
6.04ft in
Max Travel Speed
1.19mph
Specifications
Engine
Engine Make
2251
Engine Model
4M40 TL
Gross Power
57.7hp
Net Power
55.7hp
Displacement
172.7cu in
Aspiration
turbocharged
Operational
Operating Weight
15597.8lb
Fuel Capacity
35.7gal
Cooling System Fluid Capacity
4.2gal
Hydraulic System Fluid Capacity
24.9gal
Engine Oil Capacity
3.4gal
Operational Voltage
24V
Alternator Supplied Amperage
35amps
Hydraulic System Relief Valve Pressure
4641psi
Hydraulic Pump Flow Capacity
71.9gal/min
Swing Mechanism
Swing Speed
10rpm
Buckets
Reference Bucket Capacity
0.4yd3
