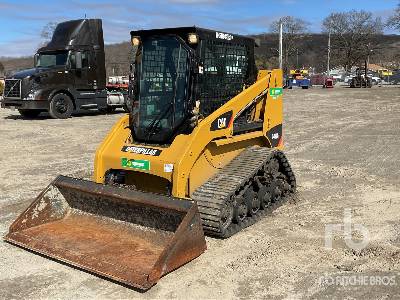

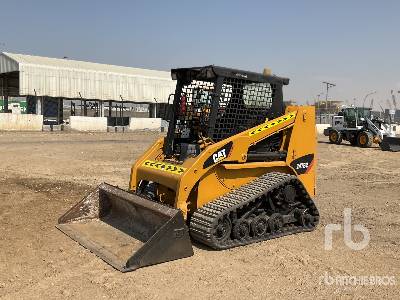

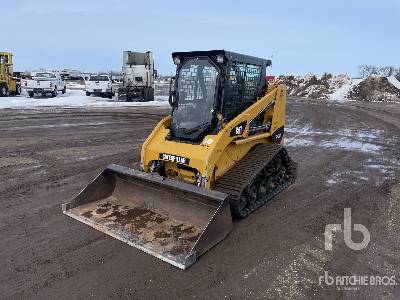

Caterpillar 247B II Multi Terrain Loader

Caterpillar 247B II Multi Terrain Loader Specs front
Caterpillar 247B II Multi Terrain Loader Specs front
Caterpillar 247B II Multi Terrain Loader Specs back
Caterpillar 247B II Multi Terrain Loader Specs back
Caterpillar 247B II Multi Terrain Loader Specs extended
Caterpillar 247B II Multi Terrain Loader Specs extended
Units

Dimensions

Dimensions

B

Width Over Tracks

5.5 ft in

C

Height to Top of Cab

6.53 ft in

E

Ground Clearance

10.52 in

G

Clearance at Max Lift and Dump

7.01 ft in

H

Reach at Max Lift and Dump

2.06 ft in

Undercarriage

D

Length of Track on Ground

4.92 ft in


Specifications

Engine

Engine Make

2236

Engine Model

C2.2T

Gross Power

61 hp

Net Power

56 hp

Displacement

134 cu in

Operational

Operating Weight

6997 lb

Fuel Capacity

17.2 gal

Cooling System Fluid Capacity

2.7 gal

Engine Oil Capacity

2.7 gal

Hydraulic System Fluid Capacity

14.6 gal

Operating Voltage

12 V

Alternator Supplied Amperage

85 amps

Max Speed - low range

7.6 mph

Max Speed - high range

7.6 mph

Loader

Breakout Force

4060 lb

Operating Load

2050 lb

Tipping Angle

4100 degrees

Undercarriage

Ground Contact Area

1770 in2

Ground Pressure

4 psi

Length of Track on Ground

5 ft in

Hydraulic

Pump Flow

15.9 gal/min

Relief Valve Pressure

3335 psi

Dimensions

Width Over Tracks

5.5 ft in

Length with Bucket

10.8 ft in

Length with out Bucket

8.3 ft in

Height to Top of Cab

6.6 ft in

Ground Clearance

10.6 in

Clearance at Max Lift and Dump

7.1 ft in

Reach at Max Lift and Dump

2.1 ft in

Turning Radius from Center - machine rear

53.4 in

Turning Radius from Center - inc bucket

85 in
