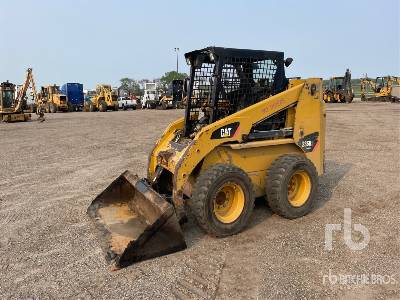

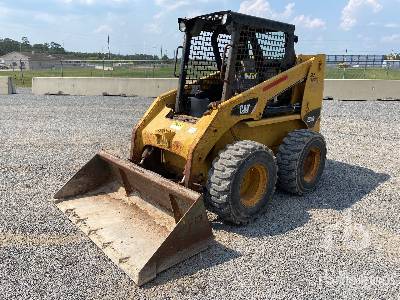

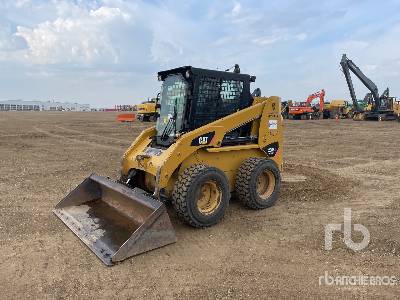

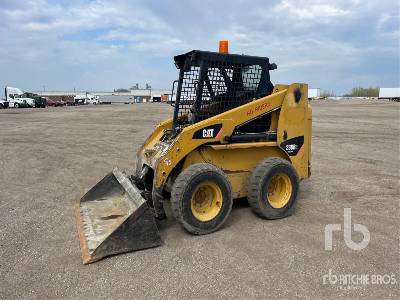

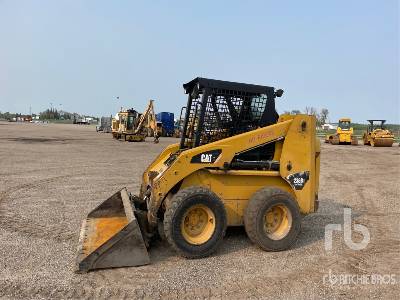

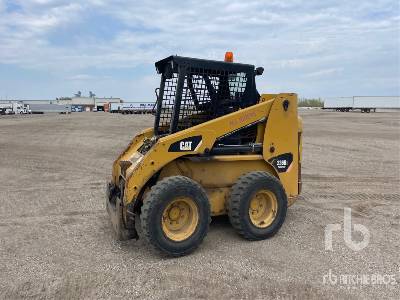

Caterpillar 236 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

11.8ft in

B

Width Over Tires

6.01ft in

C

Height to Top of Cab

6.87ft in

D

Wheelbase

3.73ft in

E

Ground Clearance

9in

F

Length w/o Bucket

9.19ft in

G

Clearance at Max Lift and Dump

7.87ft in

H

Reach at Max Lift and Dump

23.12in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3034

Gross Power

63hp

Net Power

59hp

Power Measured @

2600rpm

Displacement

183cu in

Bore

3.9in

Stroke

4in

Engine Model

Cat 3034C

Net Flywheel Power

44hp

Operational

Operational Weight

7030lb

Fuel Capacity

23.8gal

Hydraulic System Fluid Capacity

13.8gal

Operating Speed

7.6mph

Max Speed

6.9mph

Weights

Operating Weight

6810lb

Loader

Operating Load Rating

1750lb

Tipping Angle

3440degrees

Bucket Capacity

0.6yd3

Hydraulic System

Loader Hydraulic Pressure

3300 psi

Loader Hydraulic Flow

22 gal/min

Hydraulic Flow

Standard flow

Hydraulic

Pump Flow Capacity

22gal/min

Dimensions

Length with Bucket

11.8ft in

Length w/o Bucket

9.2ft in

Width Over Tires

6.1ft in

Height to Top of Cab

6.9ft in

Clearance at Max Lift and Dump

7.9ft in

Wheelbase

3.8ft in

Ground Clearance

9in

Reach at Max Lift and Dump

23.2in

Turning Radius from Center - inc bucket

85.3in

Wheel Base

3.8ft in

Bucket Pin Height - Maximum Lift

10.2ft in

Height - Top of Cab

6.9ft in

Length - Without Bucket

110in

Length - With Bucket on Ground

138in

Maximum Overall Height

156in

Bucket Pin Height - Carry Position

10in

Clearance at Maximum Lift and Dump

94in

Reach - Maximum Lift/Dump

21in

Vehicle Width over Tires

66in

Bumper Overhang - Rear Axle

41in

Operating Specifications

Rated Operating Capacity with Optional Counterweight

1850lb

Tipping Load

3500lb

Breakout Force - Tilt Cylinder

5255lb

Breakout Force - Lift Cylinder

4344lb

Rated Operating Capacity

1750lb

Service Refill Capacities

Cooling System

2.6gal

Fuel Tank

23.8gal

Hydraulic Tank

9.2gal

Engine Crankcase

1.8gal

Hydraulic System

13.7gal

Chain Box - Each Side

2gal

Cab

ROPS

SAE J1040 MAY94 and ISO3471:1994

FOPS

SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I

FOPS Level II

SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
