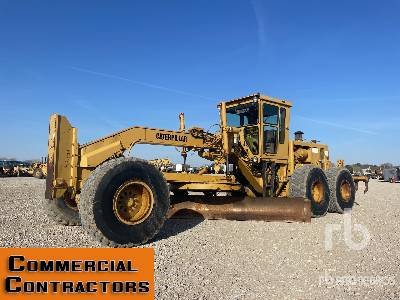

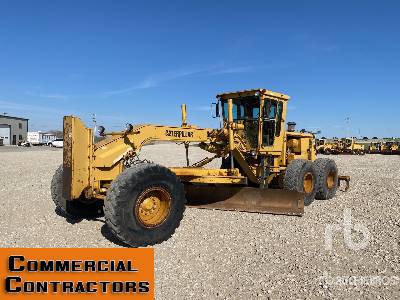

Caterpillar 14G Motor Grader

Caterpillar 14G Motor Grader Specs front
Caterpillar 14G Motor Grader Specs front
Caterpillar 14G Motor Grader Specs side
Caterpillar 14G Motor Grader Specs side
Caterpillar 14G Motor Grader Specs back
Caterpillar 14G Motor Grader Specs back
Units

Dimensions

Dimensions

A

Overall Length

30.25 ft in

B

Width Over Tires

9.32 ft in

D

Wheelbase

21.17 ft in

H

Blade Base

9.42 ft in


Specifications

Engine

Engine Make

2236

Engine Model

3306

Net Power Gear 5-6

180 hp

Max Power

180 hp

Displacement

640.8 cu in

Operational

Std Operation Weight - Total

40653.3 lb

Tire Size

16x24 10 PR

Steering

Turning Radius

26 ft in

Transmission

Number of Gears - Forward

8

Number of Gears - Reverse

8

Max Speed - Forward

27.1 mph

Max Speed - Reverse

31.5 mph

Dimensions

Height to Top of Isomount Cab

11.8 ft in

Overall Length

30.3 ft in

Width Over Tires

9.4 ft in

Wheelbase

21.2 ft in

Blade Base

9.5 ft in
