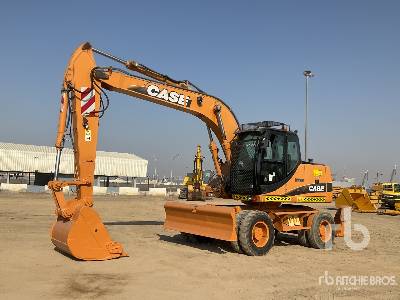

Case WX165 Mobile Excavator
Units
Dimensions
Boom/Stick Option (Mex) 1
A
Shipping Length Of Unit
26.13ft in
C
Shipping Height Of Unit
9.91ft in
I
Max Cutting Height
29.2ft in
J
Max Loading Height
21ft in
K
Max Reach Along Ground
28.55ft in
L
Max Vertical Wall Dig Depth
10.83ft in
M
Max Digging Depth
17.72ft in
Boom/Stick Option (Mex) 1
Monoboom 4.8m w/ dipper 2.3m
Boom/Stick Option (Mex) 2
A
Shipping Length Of Unit
26.25ft in
C
Shipping Height Of Unit
10.34ft in
I
Max Cutting Height
29.86ft in
J
Max Loading Height
21.33ft in
K
Max Reach Along Ground
29.2ft in
L
Max Vertical Wall Dig Depth
11.82ft in
M
Max Digging Depth
18.71ft in
Boom/Stick Option (Mex) 2
Monoboom 4.8m w/ dipper 2.6m
Boom/Stick Option (Mex) 3
C
Shipping Height Of Unit
11.41ft in
A
Shipping Length Of Unit
25.82ft in
I
Max Cutting Height
30.19ft in
J
Max Loading Height
21.99ft in
K
Max Reach Along Ground
30.19ft in
L
Max Vertical Wall Dig Depth
12.47ft in
M
Max Digging Depth
19.69ft in
Boom/Stick Option (Mex) 3
Monoboom 4.8m w/ dipper 2.9m
Dimensions
D
Wheelbase
8.37ft in
H
Tail Swing Radius
6.57ft in
B
Overall Width
8.21in
E
Ground Clearance
1.15ft in
F
Overall Width - Outriggers Down
12.83ft in
G
Height To Top Of Cab
9.98ft in
N
Upper Structure Clearance
4.04ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2239
Engine Model
659TA-M2
Net Power
141hp
Power Measured @
2000rpm
Displacement
360.1cu in
Aspiration
Turbocharged and Intercooled
Operational
Fuel Capacity
71.4gal
Operating Weight
36096.3lb
Cooling System Fluid Capacity
6.7gal
Engine Oil Capacity
4.3gal
Hydraulic System Fluid Capacity
37gal
Operational Voltage
24V
Alternator Supplied Amperage
70amps
Hydraulic System Relief Valve Pressure
5076.4psi
Hydraulic Pump Type
3 variable displacement, axial piston
Hydraulic Pump Flow Capacity
97.8gal/min
Tire Size
18-19.5XF
Swing Mechanism
Swing Speed
9rpm
Swing Torque
28027.4lb ft
Transmission
Transmission Type
powershift
Number Of Forward Gears
2
Number Of Reverse Gears
2
Max Travel Speed
18.7mph
Buckets
Reference Bucket Capacity
1yd3
Minimum Bucket Capacity
0.4yd3
Maximum Bucket Capacity
1.3yd3
