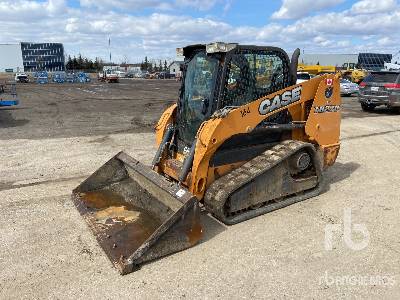

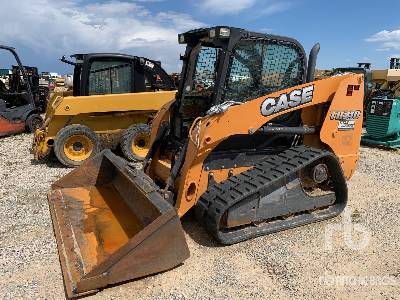

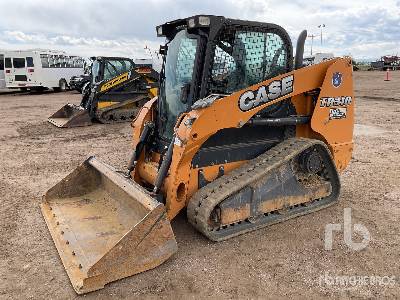

Case TR340 Multi Terrain Loader

Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Units

Dimensions

Dimensions

C

Height to Top of Cab

6.7ft in

E

Ground Clearance

9.45in

I

Track Gauge

58.3ft in


Specifications

Engine

Starter

4.3hp

Fuel

2 Diesel

Radiator Core type

Aluminum bar and plate

Battery

12-volt low-maintenance

Number of Cylinders

4

Engine Model

FPT F5B FL413 E B002

Emissions compliance

Tier 4 Final Certified (CEGR, DOC, SCR)

Gross Power

90hp

Net Power

84hp

Power Measured @

2500rpm

Peak Torque

282lb ft

Displacement

207cu in

Bore

3.9in

Stroke

4.4in

Alternator

160amps

Aspiration

Turbo

Capacities

Engine oil with filter

2.3gal

Fuel Tank

25.5gal

Diesel exhaust fluid (DEF) tank

2.9gal

Operational

Operating Weight

10000lb

Lift Configuration

Radial

Loader

Linkage Geometry

Radial

Dump Reach

24.9in

Dump Clearance at Full Height Discharge

121.5in

Bucket Rollback at Max Height

99.7degrees

Standard hydraulic pump output

24.2gal/min

Rollback - Ground Level

29.7degrees

Straight Tipping Load

6799.1lb

High flow pump output

37.6gal/min

Breakout Force

8700lb

Operating Load

3400lb

Operating Load Rating

2380lb

Tipping Angle

6800degrees

Bucket

Breakout Force

8700.2lb

Bucket Width

6.5ft in

Hydraulic

Main relief pressure

3046psi

Pump Type

Gear

Pump Flow

24.2gal/min

Dimensions

Track Gauge

58.3ft in

Length with Bucket

12ft in

Height to Top of Cab

6.7ft in

Ground Clearance

9.5in

Height to Bucket Hinge Pin

126.5in

Dump Height with Foundry/ Excavating Bucket

102.4in

Height to Top of ROPS

80.4in

Overall Length with Foundry/ Excavating Bucket

143.5in

Track Width

17.7in
