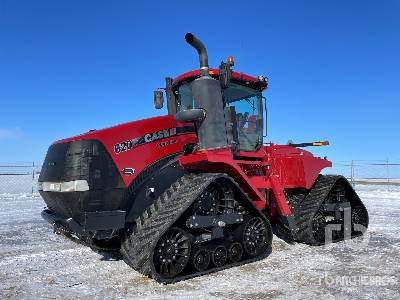

Case IH STEIGER 580 QUADTRAC (2018-PRESENT) 4WD Tractor

4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
Units

Dimensions

Dimensions

D

Wheelbase

12.84ft in

Overall Width (Axles Extended)

118-124 in, 2997-3150 mm


Specifications

Drawbar

Description

Category 4 - standard, Category 5 - optional

Electrical System

System

12V

Alternator

200amps

Engine

Fuel Injection

Direct

Emissions Level

Final Tier 4B

Number Of Cylinders

6

Def Tank Capacity

85.1gal

Advertised Rated Engine Power

580.7hp

Maximum Engine Power

638.4hp

Power Boost

57.7hp

Pto Horsepower

473.4hp

Pto Speed

1000rpm

Pto Operational Type

Independent

Block Design

Wet liners

Fuel System Control

Electronic

Steering Configuration

Frame Articulated

Drive Wheels / Tracks

4 Tracks

Engine Make

Case IH FPT

Engine Model

Steiger 580 Quadtrac

Rated Engine Speed

2100rpm

Fuel Tank Capacity

470gal

Displacement

787.3cu in

Bore

5.4in

Stroke

6in

Aspiration

Two-Stage Turbocharged, Inter- & Aftercooled

Fan Drive Type

Hydraulic fan drive

Fuel System

High Pressure Common Rail

Transmission

Manufacturers Description

PowerDrive

Transmission Type

Full powershift

Maximum Speed Forward

24.9mph

Number Of Forward Gears

16

Number Of Reverse Gears

2

Weights

Weight Without Ballast

54297.7lb

Weight With Maximum Ballast

64000.2lb

Tires

Track Widths

30 or 36 in, 762 or 914 mm

Hydraulic System

Optional Pump Flow

57-113 gal/min, 216-428 L/min

Hydraulic System Type

Pressure Flow Compensated

Main Pump Type

Single pump - standard, TwinFlow - optional

Axles

Axle Output End

Flange

Hydraulic System

Implement Pump Flow

42.1gal/min

Axles

Final Drive

Planetary & Planetary Drop Gear

Hydraulic System

Number Of Remote Control Valves

4 - standard, up to 8 total

3-Point Hitch

Category

Category 4N Quick Coupler

Lift Capacity @ 24”

19729.2lb

Draft Sensing

Three Position, Lift, Hold, Lower

Brakes

Service Brake

Wet disc
