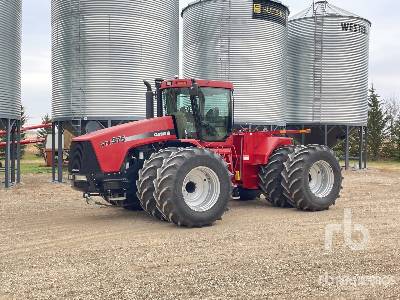

Case IH STEIGER 450 WHEELED 4WD Tractor
Units
Dimensions
Dimensions
C
Height To Top Of Cab
151.3in
D
Wheelbase
12.34ft in
Length
291.07in
Overall Width
120in
Specifications
Drawbar
Description
Category 4, Swinging
Electrical System
System
12V
Alternator
200amps
Engine
Fuel Injection
Direct
Emissions Level
Tier 4A (Interim)
Number Of Cylinders
6
Def Tank Capacity
46gal
Advertised Rated Engine Power
450.6hp
Maximum Engine Power
494.9hp
Power Boost
52.3hp
Pto Horsepower
384.9hp
Pto Speed
1000rpm
Pto Operational Type
Independent
Block Design
Wet liners
Fuel System Control
Electronic
Steering Configuration
Frame Articulated
Drive Wheels / Tracks
4WD
Engine Make
Case IH FPT
Engine Model
Steiger 450 Wheeled
Rated Engine Speed
2100rpm
Fuel Tank Capacity
309.1gal
Displacement
787.3cu in
Bore
5.4in
Stroke
6in
Aspiration
Turbocharged, Air-to-Air Aftercooled
Fan Drive Type
Hydraulic fan drive
Fuel System
Unit Injector System
Transmission
Manufacturers Description
16F x 2R Full Powershift
Transmission Type
Full powershift
Maximum Speed Forward
24.9mph
Number Of Forward Gears
16
Number Of Reverse Gears
2
Weights
Weight Without Ballast
36047.8lb
Weight With Maximum Ballast
49500.4lb
Tires
Front
710/70 R42 Duals
Rear
710/70 R42 Duals
Hydraulic System
Optional Pump Flow
57-113 gal/min, 216-428 L/min
Hydraulic System Type
Pressure Flow Compensated
Main Pump Type
PFC Pump
Axles
Axle Output End
Bar
Hydraulic System
Implement Pump Flow
42.1gal/min
Axles
Final Drive
Inboard Planetary
Axle Diameter
5in
Hydraulic System
Number Of Remote Control Valves
4 - standard, up to 8 total
3-Point Hitch
Category
Category 4N
Lift Capacity @ 24”
20000.4lb
Draft Sensing
Lower Link
Brakes
Service Brake
Wet disc
