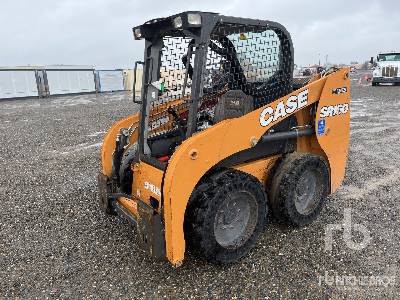

Case IH SR130 Skid Steer Loader
Units
Dimensions
Dimensions
B
Width Over Tires
4.99ft in
Bucket Hinge Pin Fully Raised
9.36ft in
Dump Height - Fully Raised, 45° Dump
84.65in
Height To Top Of Rops
75.6in
Overall Length (W/Bucket)
10.44ft in
Specifications
Engine
Emissions Certification
Tier 4 Final (DOC, DPF)
Engine Model
ISM N844L-F
Gross Power
48.8hp
Net Power
45.8hp
Engine Peak Torque
105.5lb ft
Displacement
135.2cu in
Capacities
Rated Operating Capacity
1300.8lb
Loader
Operating Load Rating
1300.8lb
Tipping Angle
2599.3degrees
Weights
Operating Weight
5070.7lb
Lift
Lift Configuration
Radial
Hydraulic System
Auxiliary Hydraulic Flow
17.5gal/min
Bucket
Breakout Force
4181.5lb
