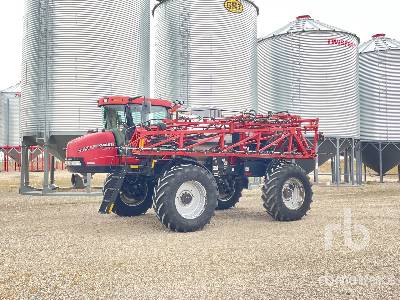

Case IH Patriot 4420 Sprayer

Case IH Patriot 4420 Sprayer Specs front
Case IH Patriot 4420 Sprayer Specs front
Case IH Patriot 4420 Sprayer Specs side
Case IH Patriot 4420 Sprayer Specs side
Case IH Patriot 4420 Sprayer Specs extended
Case IH Patriot 4420 Sprayer Specs extended
Units

Dimensions

Boom

F

Min Boom Width

60 ft in

G

Max Boom Width

90 ft in

Dimensions

A

Overall Length

27.75 in

B

Transport Width

11.5 ft in

C

Transport Height

12 ft in

D

Wheelbase

12.5 ft in

E

Ground Clearance

4.42 ft in


Specifications

Engine

Engine Make

2408

Gross Power

310 hp

Gross Torque

1020 lb ft

Displacement

506.5 cu in

Aspiration

turbo-charged after-cooled

Operational

Fuel Capacity

140 gal

Solution Tank Capacity

1200 gal

Rinse Tank Capacity

70 gal

Foam Marker Tank Capacity

55 gal

Dry Weight - min

25060 lb

Dry Weight - max

25940 lb

Transmission

Transmission Type

hydrostatic

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed

30 mph

Boom

Min Boom Width

60 ft in

Max Boom Width

90 ft in

Nozzle Spacing

20 in

Min Adjustable Height

19 in

Max Adjustable Height

84 in

Dimensions

Overall Length

27.8 in

Transport Width

11.5 ft in

Transport Height

12 ft in

Ground Clearance

4.5 ft in

Wheelbase

12.5 ft in

Turning Radius

23.3 ft in

Tire Size

380/90 R46
