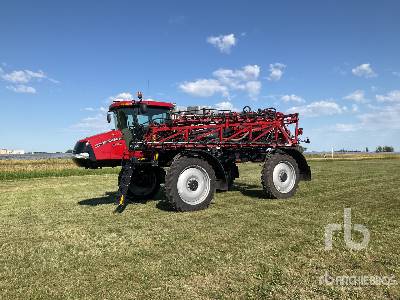

Case IH Patriot 3150 Sprayer

Sprayer
Sprayer
Sprayer
Sprayer
Sprayer
Sprayer
Units

Dimensions

Boom

F

Min Boom Width

75ft in

G

Max Boom Width

90ft in

Dimensions

A

Overall Length

90in

B

Transport Width

11.5ft in

C

Transport Height

10.8ft in

D

Wheelbase

10ft in

E

Ground Clearance

4ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2408

Gross Power

152hp

Gross Torque

414lb ft

Displacement

360.1cu in

Aspiration

turbo charged

Operational

Solution Tank Capacity

750gal

Rinse Tank Capacity

35gal

Foam Marker Tank Capacity

35gal

Dry Weight - max

15700lb

Transmission

Transmission Type

Hydrostatic

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed

25mph

Boom

Min Boom Width

75ft in

Max Boom Width

90ft in

Nozzle Spacing

20in

Min Adjustable Height

20in

Max Adjustable Height

60in

Dimensions

Overall Length

90in

Transport Width

11.5ft in

Transport Height

10.8ft in

Ground Clearance

4ft in

Wheelbase

10ft in

Turning Radius

22.5ft in

Tire Size

320/85 R38
