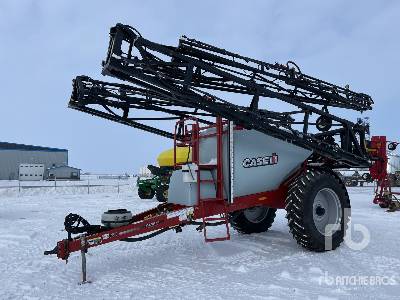

Case IH NUTRI-PLACER 930 HSLD, 47.5 FT Sprayer
Units
Dimensions
Dimensions
B
Transport Width
18.38ft in
C
Transport Height
13.46ft in
Coulter Diameter
22.6in
Specifications
Configuration
Transport Folding Method
Double fold
Row Spacings
30in
Fertilizer Material
Anhydrous
Working Width
47.6ft in
Number Of Rows
19 rows
Drawbar
Description
Drawbar Category 4 clevis standard, 5 optional
Frame
Toolbar Rigid Or Flexible
3 Section flex, 16, -7 degrees
Engine
Engine Make
Case IH
Engine Model
Nutri-Placer 930 HSLD, 47.5 ft.
Power
474.8hp
Shanks
Sealing Discs, Closing Discs, Berm Builder
13 (330) in (mm) SharkTooth blade with 11 (279) in (mm) cast closer wheel and press wheel
Shank Working Depth
6in
Tires
Main Frame Tire Size
Tandem 320/70 R15
Wing Frame Tire Size
Tandem 280/70 R15
