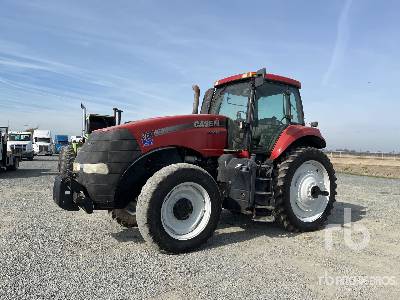

Case IH MAGNUM 370 WHEELED CVT 4WD Tractor

4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
Units

Dimensions

Dimensions

D

Wheelbase

10.34ft in


Specifications

Drawbar

Description

Category 4, Swinging

Electrical System

System

12V

Alternator

200amps

Engine

Fuel injection

Direct

Emissions level

Tier 4A (Interim)

Number of Cylinders

6

Rated engine speed

2000rpm

DEF tank capacity

23.6gal

Advertised Rated Engine Power

367.5hp

Maximum Engine Power

418.4hp

Power Boost

48.3hp

PTO Horsepower

304.5hp

PTO Speed

1000rpm

PTO operational Type

Independent

Block Design

Wet liners

Fuel System Control

Electronic

Steering Configuration

Front Steer

Drive Wheels / Tracks

4WD

Engine Make

Case IH FPT

Engine Model

Magnum 370 Wheeled CVT

Fuel tank capacity

151.9gal

Displacement

531cu in

Bore

4.7in

Stroke

5.4in

Aspiration

eVGT Turbocharged, Aftercooled

Fan drive type

BorgWarner Visctronic

Fuel system

High Pressure Common Rail

Transmission

Manufacturers Description

CVT w/Economy Mode and Creeper, 25 mph/40 kph

Transmission Type

Continuously variable

Maximum Speed Forward

24.9mph

Number of Forward Gears

Infinite

Number of Reverse Gears

Infinite

Weights

Weight without ballast

31191lb

Weight with maximum ballast

40000.7lb

Tires

Front

420/85, R34, R1W

Rear

480/80 R50, R1W Duals

Hydraulic System

Hydraulic System Type

Pressure Flow Compensated

Main pump type

Variable Displacement

Implement Pump Flow

43.9gal/min

Number of Remote Control Valves

4 - standard, 5 or 6 - optional

Axles

Axle Output End

Bar

Final Drive

Inboard / Planetary

Axle Diameter

5in

3-Point Hitch

Category

Category 4N / 3

Lift capacity @ 24”

17500.3lb

Draft sensing

Electronic position and/or draft control

Brakes

Service brake

Wet disc

Dimensions

Wheelbase

10.4ft in

Overall Width

120in

`
