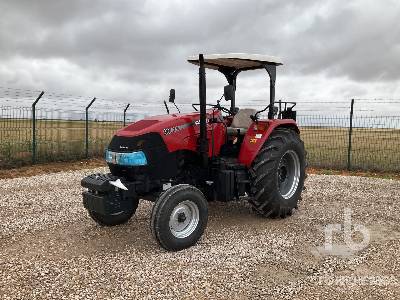

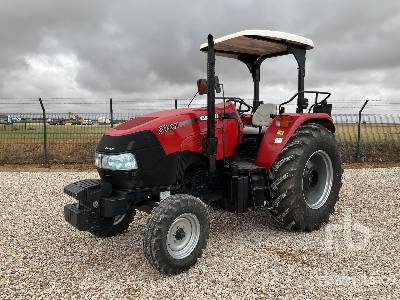

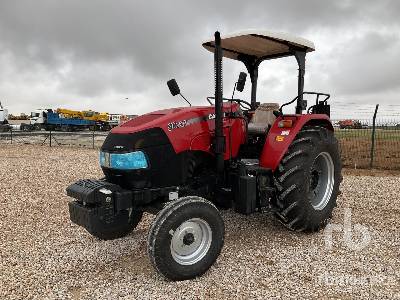

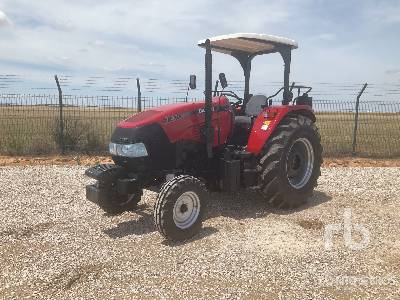

Case IH JX70 2WD Tractor

2WD Tractor
2WD Tractor
2WD Tractor
2WD Tractor
2WD Tractor
2WD Tractor
MODEL.UNITS

Dimensions

Dimensions

D

Wheelbase

7.17ft in

Height With Rops

8.09ft in


Specifications

Engine

Number Of Cylinders

3

Gross Power

62hp

Pto Power

52hp

Power Measured @

2500rpm

Displacement

177cu in

Aspiration

Turbocharged

Operational

Operating Weight

5813lb

Fuel Capacity

23.8gal

3 Point Hitch Lift Capacity @ 24 Inches

4010lb

Rear Tires Size 2wd/4wd

14.9 x 28

Alternator Supplied Amperage

85amps

Transmission

Transmission Type

12x12 w / mechanical shuttle

Number Of Forward Gears

12

Number Of Reverse Gears

12

Hydraulic System

Relief Valve Setting

2755psi

Pump Flow Capacity

21.7gal/min


MODEL.COMPARESIMILARM

MODEL.MANUFACTURERMOD

3 Point Hitch Lift Capacity @ 24 Inches

Gross Power

Operating Weight

3 Point Hitch Lift Capacity @ 24 Inches

3960 lb

Gross Power

64 hp

Operating Weight

5588 lb

3 Point Hitch Lift Capacity @ 24 Inches

3946.3 lb

Gross Power

64.4 hp

Operating Weight

5015.6 lb

3 Point Hitch Lift Capacity @ 24 Inches

3520 lb

Gross Power

66 hp

Operating Weight

5511.6 lb
