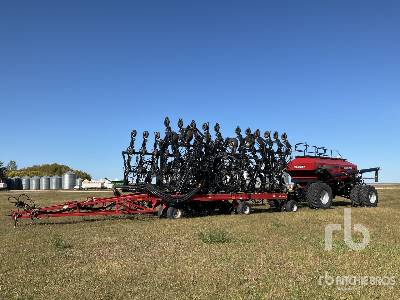

Case IH FLEX HOE 400 Air Drill
Units
Dimensions
Dimensions
Basic Weight, Maximum
33699.86lb
Basic Weight, Minimum
16999.85lb
Number Of Furrows, Maximum
85
Number Of Furrows, Minimum
28
Transport Height- Maximum
17.72ft in
Transport Height- Minimum
11.82ft in
Transport Width- Maximum
20.35ft in
Transport Width-Minimum
20.35ft in
Variants Available
5 widths, 3 row spacings
Working Width- Maximum,
57.09ft in
Working Width- Minimum
33.01ft in
Specifications
Primary Opener Assembly
Opener Type
Conventional single pivot spring trip hoe
Configuration
Seeding Method
“Min-Till , Conventional Till hoe”
Primary Opener Assembly
Depth Gauging System
Fixed to frame
Tires And Frame
Center Frame Tire
9.5L x 15FI or 11L x 15FI
Configuration
Row Spacings
7.2, 10, 12 (in) 183, 254, 305(mm)
Seed Supply
Air Cart
Tires And Frame
Wing Frame Tire
9.5L x 15FI or 11L x 15FI
Configuration
Frame Sections
3 and 5 section
Tires And Frame
Number Of Ranks
4
Configuration
Transport Folding Method
vertical fold
Tires And Frame
Distance Between Ranks
24.1in
Primary Opener Assembly
Type Of Fertilizer Delivery
Single or double shoot
Engine
Engine Make
Case IH
Engine Model
Flex Hoe 400
Wheels
Press Wheels Mounted On Opener Or To Frame
Frame-mounted
Press Wheel Description
Steel Wheel or Semi-pneumatic Tire
