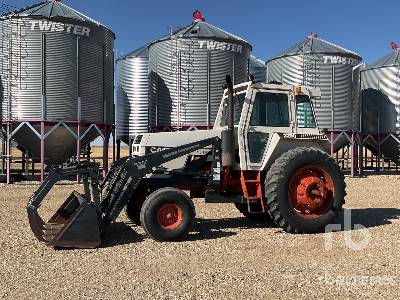

Case IHFarmall 952WD Tractor

2WD Tractor
2WD Tractor
2WD Tractor
2WD Tractor
2WD Tractor
2WD Tractor
Units

Dimensions

Dimensions

D

Wheelbase

7.84ft in


Specifications

Engine

Number of Cylinders

4

Gross Power

90hp

PTO Power

80hp

Power Measured @

2500rpm

Displacement

274.7

Aspiration

turbocharged

Operational

Operating Weight

6768lb

Fuel Capacity

23.8gal

3 Point Hitch Lift Capacity @ 24 inches

5025lb

Rear Tires Size 2wd/4wd

18.4 x 30

Alternator Supplied Amperage

85amps

Transmission

Transmission Type

12x12 w / mechanical shuttle

Number of Forward Gears

12

Number of Reverse Gears

12

Hydraulic System

Relief Valve Setting

2755

Pump Flow Capacity

21.7gal/min

Dimensions

Wheelbase

7.9ft in

Height with ROPS

8.5ft in


Compare similar models

Manufacturer / Model

Gross Power

Operating Weight

3 Point Hitch Lift Capacity @ 24 inches

Gross Power

84 hp

Operating Weight

6363 lb

3 Point Hitch Lift Capacity @ 24 inches

5025 lb

Gross Power

90 hp

Operating Weight

7694.2 lb

3 Point Hitch Lift Capacity @ 24 inches

5028 lb

Gross Power

89 hp

Operating Weight

6812 lb

3 Point Hitch Lift Capacity @ 24 inches

4199 lb
