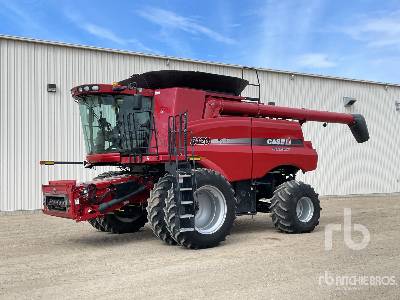

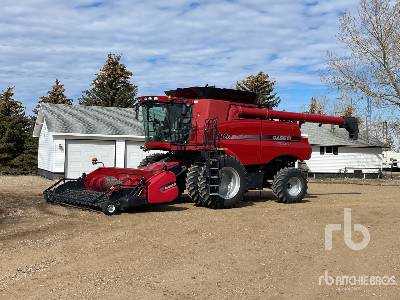

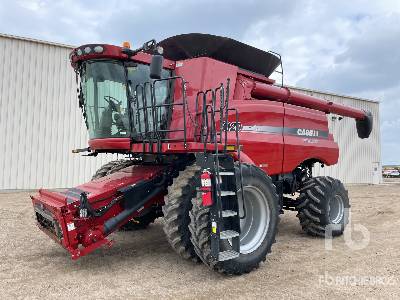

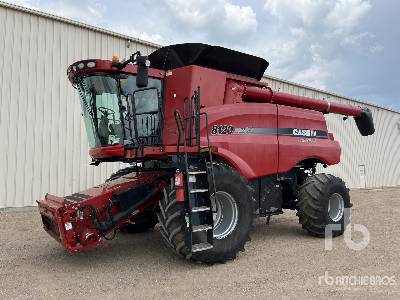

Case IH AXIAL-FLOW 7240 Combine

Case IH AXIAL-FLOW 7240 Combine Specs front
Case IH AXIAL-FLOW 7240 Combine Specs front
Case IH AXIAL-FLOW 7240 Combine Specs side
Case IH AXIAL-FLOW 7240 Combine Specs side
Case IH AXIAL-FLOW 7240 Combine Specs back
Case IH AXIAL-FLOW 7240 Combine Specs back
Units

Specifications

Engine

Emission Tier Level

Tier 4B / Final

Fuel tank

297 gal

Number of Cylinders

6

Max. horsepower

468 hp

Rated horsepower

402 hp

Piston displacement

677.4 cu in

Power Boost

66 hp

Engine Make

Case IH FPT

Engine Model

11.1 L

Diesel exhaust fluid (DEF) tank capacity

43.1 gal

Feeding

Feeder Width

54.1 in

Feeder Speed Variable

Standard

Feeder Reverser Control

Electro-Hydraulic

Feeder Tilt Adjustment

Fore-aft standard, Lateral standard.

Stone or Rock Protection

Gear Driven Trap

Tires

Reference Drive Tire Size

Dual IF520/85 R42 CFO, R1

Threshing

Threshing System Type- Rotary or Conventional Cylinder

Longitudinal rotor

Tires

Steering Tire Size

VF600/70 R28 CFO, R1W

Threshing

Number of Rotors or Cylinders

1 Rotor

Rotor or Cylinder Description

Staggered Rasp Bars

Tires

Rubber Tracks Available

30\" or 36\" Factory Fit

Threshing

Rotor or Cylinder Diameter

30 in

Weights

Weight 2WD-single tires

40333.6 lb

Threshing

Rotor or Cylinder Length

102.8 in

Rotor or Cylinder Speed Range

220 To 1180

Weights

Weight 2WD-dual tires

44465.1 lb

Wheelbase, 2WD

147.8 in

Threshing

Threshing Area

180 in2

Concave Adjustment

Electronic, with position sensor

Weights

Transport Height

13.4 ft in

Cleaning System

Total Sieve Area-Fixed

10075.1 in2

Leveling System Available

Self-leveling to 12.1%

Cleaning Fan Description

15.4 (391) in dia. Cross Flow

Cleaning Fan Speed Range

300 To 1150

Grain Handling

Optional Grain Tank Capacity

410 bu

Reach from Machine Center- Standard Auger

28.9 ft in

Reach from Machine Center- Optional Auger

34.2 ft in

Grain Tank Capacity

315 bu

Unloading Speed

4.1 bu/sec
