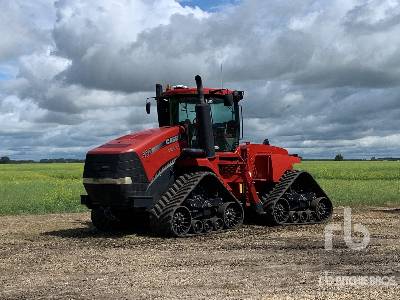

Case IH 385 Wheeled / Heavy-Duty / Quadtrac 4WD Tractor

Case IH 385 Wheeled / Heavy-Duty / Quadtrac 4WD Tractor Specs front
Case IH 385 Wheeled / Heavy-Duty / Quadtrac 4WD Tractor Specs front
Case IH 385 Wheeled / Heavy-Duty / Quadtrac 4WD Tractor Specs side
Case IH 385 Wheeled / Heavy-Duty / Quadtrac 4WD Tractor Specs side
Case IH 385 Wheeled / Heavy-Duty / Quadtrac 4WD Tractor Specs back
Case IH 385 Wheeled / Heavy-Duty / Quadtrac 4WD Tractor Specs back
Units

Dimensions

Dimensions

B

Width Outside Frame

3.68 ft in

D

Wheelbase

12.83 in


Specifications

Engine

Engine Make

2408

Net Power

385 hp

PTO Power

339 hp

Power Measured @

2000 rpm

Torque Rise

40 %

Displacement

787 cu in

Aspiration

Turbocharger Standard

Operational

Operating Weight

45600 lb

Fuel Capacity

300 gal

Drawbar Static Vertical Load Rating

5300 lb

3 Point Hitch Type

Cat. IV-N

Turning Radius

16.8 ft in

3 Point Hitch Lift Capacity @ 24 inches

19621.2 lb

Transmission

Transmission Type

Powershift

Number of Forward Gears

16

Number of Reverse Gears

2

Hydraulic System

Pump Flow Capacity

40 gal/min

Axles

Final Drive

Inboard 4-Planetary

Axle Diameter

4.6 in

Dimensions

Wheelbase

12.9 in

Track Width

30 in

Tire Size

710/70R42 Duals

Width Outside Frame

3.7 ft in


Compare similar models

Manufacturer / Model

Operating Weight

3 Point Hitch Lift Capacity @ 24 inches

Operating Weight

45600.5 lb

3 Point Hitch Lift Capacity @ 24 inches

19621.2 lb

Operating Weight

41605 lb

3 Point Hitch Lift Capacity @ 24 inches

19620 lb

Operating Weight

42000 lb

3 Point Hitch Lift Capacity @ 24 inches

20000 lb
