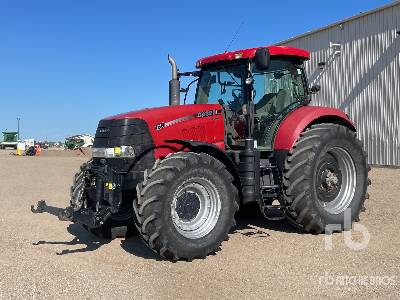

Case IH 180 4WD Tractor

Case IH 180 4WD Tractor Specs front
Case IH 180 4WD Tractor Specs front
Case IH 180 4WD Tractor Specs side
Case IH 180 4WD Tractor Specs side
Case IH 180 4WD Tractor Specs back
Case IH 180 4WD Tractor Specs back
Units

Dimensions

Dimensions

C

Height to Top of Cab

9.98 ft in

D

Wheelbase

9.47 in


Specifications

Engine

Number of Cylinders

6

PTO Power

135 hp

Power Measured @

2200 rpm

Displacement

411 cu in

Aspiration

Turbocharged / Intercooled

Operational

Operating Weight

15708 lb

Fuel Capacity

116.3 gal

Hydraulic System Fluid Capacity

26.5 gal

Engine Oil Capacity

4 gal

3 Point Hitch Type

Cat. II / IIIN

3 Point Hitch Lift Capacity @ 24 inches

12786.9 lb

Operating Voltage

12 V

Alternator Supplied Amperage

150 amps

Transmission

Transmission Type

18-speed full powershift

Number of Forward Gears

18

Number of Reverse Gears

6

Hydraulic System

Pump Flow Capacity

48.7 gal/min

Axles

Axle Length

97.9 in

Axle Diameter

4.2 in

Hydraulic System

Number of Remote Control Valves

3

Dimensions

Wheelbase

9.5 in

Height to Top of Cab

10 ft in

Tire Size

18.4R42
