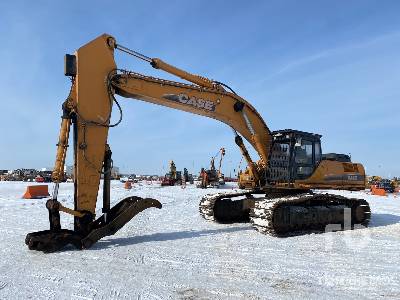

Case CX460 Hydraulic Excavator

Case CX460 Hydraulic Excavator Specs front
Case CX460 Hydraulic Excavator Specs front
Case CX460 Hydraulic Excavator Specs side
Case CX460 Hydraulic Excavator Specs side
Case CX460 Hydraulic Excavator Specs extended
Case CX460 Hydraulic Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

39.08 ft in

C

Shipping Height of Unit

11.82 ft in

I

Max Cutting Height

37.17 ft in

J

Max Loading Height

26.08 ft in

K

Max Reach Along Ground

40.42 ft in

L

Max Vertical Wall Digging Depth

23.5 ft in

M

Max Digging Depth

27.33 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

39.16 ft in

C

Shipping Height of Unit

11.82 ft in

I

Max Cutting Height

36.58 ft in

J

Max Loading Height

25.42 ft in

K

Max Reach Along Ground

38.58 ft in

L

Max Vertical Wall Digging Depth

24.58 ft in

M

Max Digging Depth

25.33 ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

39.33 ft in

C

Shipping Height of Unit

12.05 ft in

I

Max Cutting Height

35.5 ft in

J

Max Loading Height

24.33 ft in

K

Max Reach Along Ground

36.08 ft in

L

Max Vertical Wall Digging Depth

18.58 ft in

M

Max Digging Depth

22.5 ft in

Dimensions

B

Width to Outside of Tracks

12 ft in

D

Length of Track on Ground

14.42 ft in

E

Ground Clearance

21 ft in

G

Height to Top of Cab

10.75 ft in

H

Tail Swing Radius

11.92 ft in

Undercarriage

F

Track Gauge

9.03 ft in

N

Shoe Size

35.44 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2353

Engine Model

AH-6UZ1XYSS, Tier III certified

Net Power

362 hp

Power Measured @

1950 rpm

Displacement

600 cu in

Max Torque

1058 lb ft

Torque Measured @

1500 rpm

Aspiration

turbocharged

Operational

Operating Weight

102974 lb

Fuel Capacity

161 gal

Cooling System Fluid Capacity

10 gal

Hydraulic System Fluid Capacity

122 gal

Engine Oil Capacity

9.5 gal

Swing Drive Fluid Capacity

2.8 gal

Operating Voltage

24 V

Alternator Supplied Amperage

50 amps

Hydraulic System Relief Valve Pressure

4554 psi

Hydraulic Pump Flow Capacity

190.3 gal/min

Swing Mechanism

Swing Speed

9 rpm

Undercarriage

Number of Shoes per Side

50

Shoe Size

35.5 in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

9

Ground Pressure

7.8 psi

Max Travel Speed

3.3 mph

Drawbar Pull

78908 lb

Track Gauge

9.1 ft in

Buckets

Reference Bucket Capacity

2.9 yd3

Minimum Bucket Capacity

1.8 yd3

Maximum Bucket Capacity

4.1 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 22'11" (6980mm)/ Stick 13'1" (4000 mm)

Shipping Height of Unit

11.9 ft in

Shipping Length of Unit

39.1 ft in

Max Digging Depth

27.4 ft in

Max Reach Along Ground

40.5 ft in

Max Cutting Height

37.2 ft in

Max Loading Height

26.1 ft in

Max Vertical Wall Digging Depth

23.5 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 22'11" (6980mm)/ Stick 11'1" (3380 mm)

Shipping Height of Unit

11.9 ft in

Shipping Length of Unit

39.2 ft in

Max Digging Depth

25.4 ft in

Max Reach Along Ground

38.6 ft in

Max Cutting Height

36.6 ft in

Max Loading Height

25.5 ft in

Max Vertical Wall Digging Depth

24.6 ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

Boom 22'11" (6980mm)/ Stick 8'4" (2530 mm)

Shipping Height of Unit

12.1 ft in

Shipping Length of Unit

39.4 ft in

Max Digging Depth

22.5 ft in

Max Reach Along Ground

36.1 ft in

Max Cutting Height

35.5 ft in

Max Loading Height

24.4 ft in

Max Vertical Wall Digging Depth

18.6 ft in

Dimensions

Width to Outside of Tracks

12 ft in

Height to Top of Cab

10.8 ft in

Ground Clearance

21 ft in

Removal Counterweight Clearance

52 ft in

Tail Swing Radius

12 ft in

Length of Track on Ground

14.5 ft in
