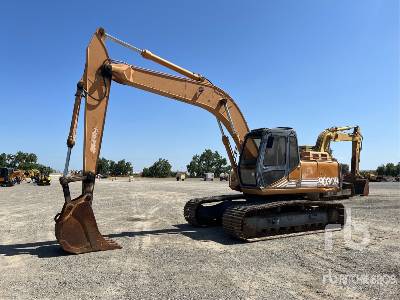

Case CX350B Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

36.39ft in

C

Shipping Height of Unit

11.42ft in

I

Max Cutting Height

35.01ft in

J

Max Loading Height

24.74ft in

K

Max Reach Along Ground

38.46ft in

L

Max Vertical Wall Digging Depth

23.46ft in

M

Max Digging Depth

26.71ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

36.26ft in

C

Shipping Height of Unit

10.7ft in

I

Max Cutting Height

34.03ft in

J

Max Loading Height

23.73ft in

K

Max Reach Along Ground

36.03ft in

L

Max Vertical Wall Digging Depth

20.84ft in

M

Max Digging Depth

24.09ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

36.52ft in

C

Shipping Height of Unit

11.49ft in

I

Max Cutting Height

33.86ft in

J

Max Loading Height

23.43ft in

K

Max Reach Along Ground

34.36ft in

L

Max Vertical Wall Digging Depth

19.59ft in

M

Max Digging Depth

22.09ft in

Dimensions

B

Width to Outside of Tracks

11.16ft in

D

Length of Track on Ground

13.26ft in

E

Ground Clearance

1.58ft in

G

Height to Top of Cab

10.47ft in

H

Tail Swing Radius

11.32ft in

Undercarriage

F

Track Gauge

8.54ft in

N

Shoe Size

31.5in


Specifications

Engine

Number of Cylinders

6

Engine Make

2353

Engine Model

AH-6HK1XYSS, Tier III certified

Net Power

270.9hp

Power Measured @

2000rpm

Displacement

475cu in

Max Torque

797lb ft

Torque Measured @

1500rpm

Aspiration

Turbocharged

Operational

Operating Weight

79064.4lb

Fuel Capacity

153.3gal

Cooling System Fluid Capacity

8gal

Hydraulic System Fluid Capacity

92.5gal

Engine Oil Capacity

10.1gal

Swing Drive Fluid Capacity

2.1gal

Operating Voltage

24V

Alternator Supplied Amperage

50amps

Hydraulic System Relief Valve Pressure

4975psi

Hydraulic Pump Flow Capacity

153.3gal/min

Swing Mechanism

Swing Speed

9.8rpm

Swing Torque

82607lb ft

Undercarriage

Number of Shoes per Side

48

Shoe Size

31.5in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

8

Ground Pressure

7.5psi

Max Travel Speed

3.5mph

Drawbar Pull

59619lb

Track Gauge

8.6ft in

Buckets

Reference Bucket Capacity

1.8yd3

Minimum Bucket Capacity

1.3yd3

Maximum Bucket Capacity

3yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 6450mm / Stick 13\'3\" 4040mm

Shipping Height of Unit

11.5ft in

Shipping Length of Unit

36.4ft in

Max Digging Depth

26.8ft in

Max Reach Along Ground

38.5ft in

Max Cutting Height

35.1ft in

Max Loading Height

24.8ft in

Max Vertical Wall Digging Depth

23.5ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 6450mm / Stick 10\'8\" 3250mm

Shipping Height of Unit

10.7ft in

Shipping Length of Unit

36.3ft in

Max Digging Depth

24.1ft in

Max Reach Along Ground

36.1ft in

Max Cutting Height

34.1ft in

Max Loading Height

23.8ft in

Max Vertical Wall Digging Depth

20.9ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

Boom 6450mm / Stick 8\'8\" 2630mm

Shipping Height of Unit

11.5ft in

Shipping Length of Unit

36.6ft in

Max Digging Depth

22.1ft in

Max Reach Along Ground

34.4ft in

Max Cutting Height

33.9ft in

Max Loading Height

23.5ft in

Max Vertical Wall Digging Depth

19.6ft in

Dimensions

Width to Outside of Tracks

11.2ft in

Height to Top of Cab

10.5ft in

Ground Clearance

1.6ft in

Removal Counterweight Clearance

4ft in

Tail Swing Radius

11.4ft in

Length of Track on Ground

13.3ft in
