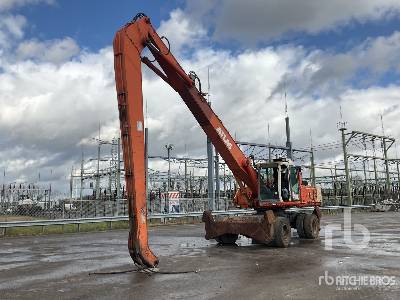

Case CX290D MATERIAL HANDLER Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

M

Max Digging Depth

11.85ft in

Dimensions

E

Ground Clearance

1.65ft in

H

Tail Swing Radius

9.68ft in


Specifications

Engine

Emission Tier Level

Tier 4

Fuel injection

Direct injection – electronic

Fuel Filter

Replaceable, full flow spin-on cartridge

Horsepower per SAE J1349 Net

177.2hp

Air filter type

Dry type element with warning restriction indicator

Number of Cylinders

4

Engine Model

Isuzu AQ-4HK1X

Power Measured @

2000rpm

Max Torque

458.1lb ft

Displacement

317.4cu in

Fuel Type

Requires ultra low-sulfur fuel B5 biodiesel tolerant

Bore

4.6in

Stroke

5in

Oil Filter

Replaceable, full flow spin-on cartridge

Capacities

Engine oil w/ filter change

6.2gal

Swing drive

2.6gal

Fuel Tank

108.4gal

Hydraulic Tank

38.9gal

Cooling system

8.3gal

Final Drive

1.4gal

Hydraulic system

66.1gal

Swing Mechanism

Swing Speed

11rpm

Undercarriage

Track Shoe Width

23.7in

Boom/Stick Option (HEX) 1

Max Digging Depth

11.9ft in

Max Digging Reach on Ground

38ft in

Max.Dumping Height

41.7ft in

Brakes

Brakes Type

Mechanical disc

Service brake

SAHR disc – each motor

Travel control

Dual stage relief or counter balance design

Dimensions

Overall width -Upper Structure

9.8ft in

Overall Height with cab

10.5ft in

Overall length (W/bucket)

33.6ft in

Center to center – idler to sprocket

12.6ft in

Overall Track Length

15.4ft in

Ground Clearance

1.7ft in

Tail Swing Radius

9.7ft in

Rear Ground Clearance

3.8ft in

`
