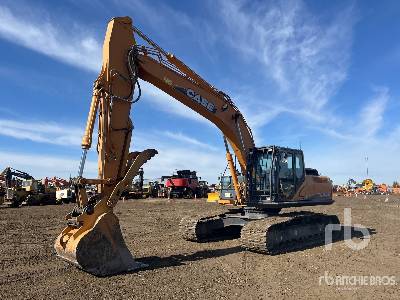

Case CX250C Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

10.5ft in

C

Shipping Height of Unit

32.42ft in

I

Max Cutting Height

32.03ft in

J

Max Loading Height

22.18ft in

K

Max Reach Along Ground

33.14ft in

M

Max Digging Depth

22.64ft in

Dimensions

B

Width to Outside of Tracks

9.09ft in

D

Length of Track on Ground

32.42ft in

E

Ground Clearance

1.51ft in

G

Height to Top of Cab

10.5ft in

H

Tail Swing Radius

9.68ft in

Undercarriage

F

Track Gauge

8.5ft in

N

Shoe Size

23.63in


Specifications

Engine

Number of Cylinders

4

Engine Make

ISUZU

Engine Model

AL-4HK1X

Gross Power

177.1hp

Power Measured @

2000rpm

Displacement

316.8cu in

Max Torque

458.1lb ft

Torque Measured @

1800rpm

Operational

Operating Weight

54233.8lb

Fuel Capacity

108.4gal

Cooling System Fluid Capacity

8gal

Hydraulic System Fluid Capacity

66.1gal

Operating Voltage

24V

Alternator Supplied Amperage

50amps

Hydraulic Pump Flow Capacity

123.7gal/min

Swing Mechanism

Swing Speed

10.6rpm

Undercarriage

Number of Shoes per Side

51

Shoe Size

23.7in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

9

Max Travel Speed

3.5mph

Drawbar Pull

45186.6lb

Track Gauge

8.5ft in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Arm - 3.00 m

Shipping Height of Unit

32.5ft in

Shipping Length of Unit

10.5ft in

Max Digging Depth

22.7ft in

Max Reach Along Ground

33.2ft in

Max Cutting Height

32.1ft in

Max Loading Height

22.2ft in

Dimensions

Width to Outside of Tracks

9.1ft in

Height to Top of Cab

10.5ft in

Ground Clearance

1.6ft in

Tail Swing Radius

9.7ft in

Length of Track on Ground

32.5ft in
