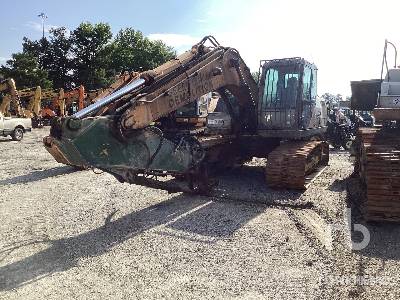

Case CX210 NLC Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

31.17ft in

C

Shipping Height of Unit

9.72ft in

I

Max Cutting Height

31.76ft in

J

Max Loading Height

22.54ft in

K

Max Reach Along Ground

32.09ft in

L

Max Vertical Wall Digging Depth

19.82ft in

M

Max Digging Depth

21.92ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

31.44ft in

C

Shipping Height of Unit

10.08ft in

I

Max Cutting Height

30.88ft in

J

Max Loading Height

21.66ft in

K

Max Reach Along Ground

30.29ft in

L

Max Vertical Wall Digging Depth

17.89ft in

M

Max Digging Depth

19.95ft in

Dimensions

B

Width to Outside of Tracks

8.5ft in

D

Length of Track on Ground

12.01ft in

E

Ground Clearance

1.51ft in

G

Height to Top of Cab

9.52ft in

H

Tail Swing Radius

9.29ft in

Undercarriage

N

Shoe Size

23.6in


Specifications

Engine

Number of Cylinders

6

Engine Make

2353

Engine Model

BB-6BGIT

Net Power

141hp

Power Measured @

1950rpm

Displacement

396cu in

Max Torque

402lb ft

Torque Measured @

1600rpm

Aspiration

Turbocharged

Operational

Operating Weight

44463lb

Fuel Capacity

70.1gal

Cooling System Fluid Capacity

7.2gal

Hydraulic System Fluid Capacity

54.5gal

Engine Oil Capacity

6.4gal

Swing Drive Fluid Capacity

1.2gal

Operating Voltage

24V

Alternator Supplied Amperage

40amps

Hydraulic System Relief Valve Pressure

4975psi

Hydraulic Pump Flow Capacity

53.1gal/min

Swing Mechanism

Swing Speed

11.9rpm

Undercarriage

Number of Shoes per Side

49

Shoe Size

23.6in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

8

Ground Pressure

6.1psi

Max Travel Speed

3.4mph

Drawbar Pull

41140lb

Buckets

Reference Bucket Capacity

1yd3

Minimum Bucket Capacity

0.7yd3

Maximum Bucket Capacity

1.4yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 18'8" (5700mm)/ Stick 9'10" (3000mm)

Shipping Height of Unit

9.8ft in

Shipping Length of Unit

31.2ft in

Max Digging Depth

22ft in

Max Reach Along Ground

32.1ft in

Max Cutting Height

31.8ft in

Max Loading Height

22.6ft in

Max Vertical Wall Digging Depth

19.9ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 18'8" (5700mm)/ Stick 7'10" (2400mm)

Shipping Height of Unit

10.1ft in

Shipping Length of Unit

31.5ft in

Max Digging Depth

20ft in

Max Reach Along Ground

30.3ft in

Max Cutting Height

30.9ft in

Max Loading Height

21.7ft in

Max Vertical Wall Digging Depth

17.9ft in

Dimensions

Width to Outside of Tracks

8.5ft in

Height to Top of Cab

9.6ft in

Ground Clearance

1.6ft in

Removal Counterweight Clearance

3.6ft in

Tail Swing Radius

9.3ft in

Length of Track on Ground

12.1ft in
