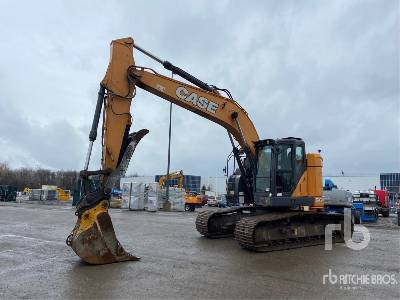

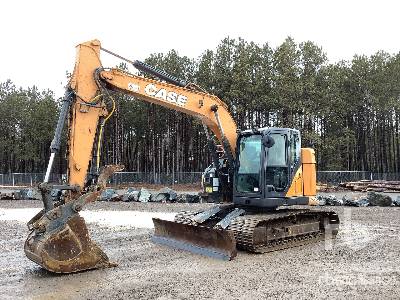

Case CX145D SR Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

L

Max Vertical Wall Digging Depth

16.08ft in

M

Max Digging Depth

18.08ft in

Boom/Stick Option (HEX) 2

L

Max Vertical Wall Digging Depth

17.33ft in

Boom/Stick Option (HEX) 3

M

Max Digging Depth

16.77ft in

Dimensions

E

Ground Clearance

1.4ft in

H

Tail Swing Radius

5.02ft in


Specifications

Engine

Emission Tier Level

Tier 4

Fuel injection

Direct injection – electronic

Fuel Filter

Replaceable, full flow spin-on cartridge

Air filter type

Dry type element with warning restriction indicator

Number of Cylinders

4

Engine Model

Isuzu 4 JJ 1X

Net Power

102hp

Power Measured @

2000rpm

Max Torque

257.5lb ft

Displacement

183.1cu in

Fuel Type

Requires ultra low-sulfur fuel B5 biodiesel tolerant

Bore

3.8in

Stroke

4.2in

Oil Filter

Replaceable, full flow spin-on cartridge

Capacities

Engine oil w/ filter change

4.5gal

Swing drive

0.6gal

Fuel Tank

52.9gal

Hydraulic Tank

19.9gal

Cooling system

4.4gal

Final Drive

0.6gal

Hydraulic system

41.8gal

Operational

Arm Breakout Force

14837.4lb

Operating Weight

33510.3lb

Arm size

8.3ft in

Performance

Lift over end 10\' radius - lbs (kg)

18408.6lb

Lift over end Max. reach

2755.8lb

Lift over side 10\' radius

14352.1lb

Lift over side Max. reach

2755.8lb

Transmission

Max Speed

3.5mph

Swing Mechanism

Swing Speed

12.5rpm

Undercarriage

Track Shoe Width

23.7in

Hydraulic System

Main pump - Maximum flow

68.2gal/min

System relief pressure

49.8psi

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

8 ft 2 in (2.50 m) Arm

Mximum dig radius

326.4in

Dig radius at ground line

320.5in

Dump height

273.3in

Bucket rotation

178degrees

Minimum swing radius

92.2in

Max Digging Depth

18.1ft in

Max Vertical Wall Digging Depth

16.1ft in

Max Digging Reach on Ground

26.8ft in

Max.Dumping Height

22.8ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

9 ft 10 in (3.01 m) Arm

Maximum dig radius

344.1in

Dig radius at ground line

338.6in

Dump height

287.1in

Maximum reach height

381.5in

Bucket rotation

178degrees

Minimum swing radius

108.3in

Max Vertical Wall Digging Depth

17.4ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

6 ft 11 in (2.11 m) Arm

Maximum dig radius

312.6in

Dig radius at ground line

306.3in

Dump height

262.3in

Maximum reach height

356.7in

Bucket rotation

178degrees

Minimum swing radius

80in

Max Digging Depth

16.8ft in

Brakes

Brakes Type

Mechanical disc

Service brake

SAHR disc – each motor

Travel control

Dual stage relief or counter balance design

Dimensions

Overall height

9.4ft in

Center to center – idler to sprocket

10ft in

Cab height

111.1in

Track length

148.1in

Track shoe width

2ft in

Boom length

15.2ft in

Ground pressure

5.9psi

Ground Clearance

1.4ft in

Tail Swing Radius

5.1ft in
