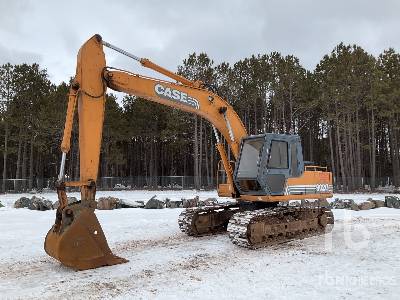

Case 9040B Hydraulic Excavator

Case 9040B Hydraulic Excavator Specs front
Case 9040B Hydraulic Excavator Specs front
Case 9040B Hydraulic Excavator Specs side
Case 9040B Hydraulic Excavator Specs side
Case 9040B Hydraulic Excavator Specs extended
Case 9040B Hydraulic Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

32.85 ft in

C

Shipping Height of Unit

10.57 ft in

I

Max Cutting Height

32.58 ft in

J

Max Loading Height

22.58 ft in

K

Max Reach Along Ground

35.01 ft in

L

Max Vertical Wall Digging Depth

21.92 ft in

M

Max Digging Depth

24.25 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

32.75 ft in

C

Shipping Height of Unit

10.01 ft in

I

Max Cutting Height

31.83 ft in

J

Max Loading Height

21.92 ft in

K

Max Reach Along Ground

33.67 ft in

L

Max Vertical Wall Digging Depth

20.35 ft in

M

Max Digging Depth

22.84 ft in

Dimensions

B

Width to Outside of Tracks

11.09 ft in

D

Length of Track on Ground

12.6 ft in

E

Ground Clearance

2.5 ft in

G

Height to Top of Cab

9.85 ft in

H

Tail Swing Radius

9.85 ft in

Undercarriage

N

Shoe Size

32 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2239

Engine Model

6T-830

Net Power

178 hp

Power Measured @

2200 rpm

Displacement

505 cu in

Max Torque

574 lb ft

Torque Measured @

1500 rpm

Aspiration

Turbocharged

Operational

Operating Weight

53140 lb

Fuel Capacity

81.9 gal

Cooling System Fluid Capacity

6.8 gal

Hydraulic System Fluid Capacity

58.2 gal

Engine Oil Capacity

5.9 gal

Swing Drive Fluid Capacity

1.6 gal

Operating Voltage

24 V

Alternator Supplied Amperage

65 amps

Hydraulic System Relief Valve Pressure

4554 psi

Hydraulic Pump Flow Capacity

56.1 gal/min

Swing Mechanism

Swing Speed

10.4 rpm

Undercarriage

Number of Shoes per Side

51

Shoe Size

32 in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

9

Ground Pressure

5.2 psi

Max Travel Speed

3.4 mph

Drawbar Pull

43000 lb

Buckets

Reference Bucket Capacity

1.2 yd3

Minimum Bucket Capacity

1 yd3

Maximum Bucket Capacity

1.9 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 19'2" (5800mm)/ Stick 11'7" (3500mm)

Shipping Height of Unit

10.6 ft in

Shipping Length of Unit

32.9 ft in

Max Digging Depth

24.3 ft in

Max Reach Along Ground

35.1 ft in

Max Cutting Height

32.6 ft in

Max Loading Height

22.6 ft in

Max Vertical Wall Digging Depth

22 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 19'2" (5800mm)/ Stick 10'2" (3100mm)

Shipping Height of Unit

10.1 ft in

Shipping Length of Unit

32.8 ft in

Max Digging Depth

22.9 ft in

Max Reach Along Ground

33.7 ft in

Max Cutting Height

31.9 ft in

Max Loading Height

22 ft in

Max Vertical Wall Digging Depth

20.4 ft in

Dimensions

Width to Outside of Tracks

11.1 ft in

Height to Top of Cab

9.9 ft in

Ground Clearance

2.5 ft in

Removal Counterweight Clearance

3.6 ft in

Tail Swing Radius

9.9 ft in

Length of Track on Ground

12.6 ft in
