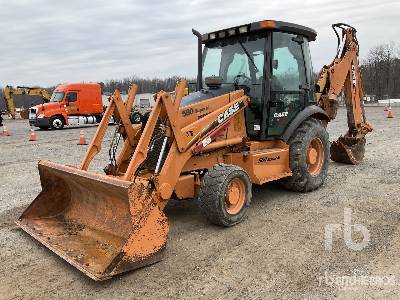

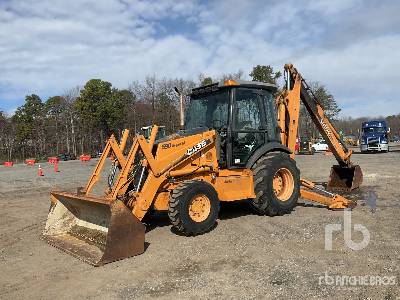

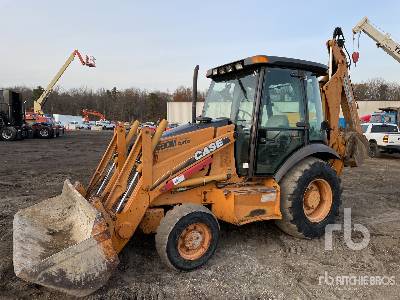

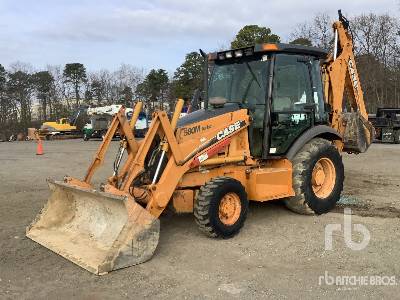

Case 680E Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

11.42ft in

K

Reach From Swivel - Std

19.91ft in

L

Dig Depth - Std

16.78ft in

M

Reach at Load Height - Std

8.23ft in

Dimensions

A

Transport Length

22.22ft in

B

Transport Width

7.54ft in

C

Transport Height

12.25ft in

D

Wheelbase

7.02ft in

E

Ground Clearance

1.15ft in

Loader

G

Clearance at Max Dump Height

9.55ft in

I

Dig Depth

3.71in


Specifications

Engine

Number of Cylinders

4

Engine Make

2239

Engine Model

336

Net Power

80hp

Power Measured @

2200rpm

Torque Measured @

1500rpm

Net Max Torque

221lb ft

Displacement

336cu in

Operational

Operating Weight 2wd

16960.2lb

Fuel Capacity

30gal

Hydraulic System Fluid Capacity

13.8gal

Oil System Fluid Capacity

2.6gal

Cooling System Fluid Capacity

8gal

Transmission Fluid Capacity

3gal

Rear Axle Fluid Capacity

3.4gal

Rear Tires Size 2wd/4wd

16.9x24

Transmission

Transmission Type

syncromesh

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

19.4mph

Max Speed Reverse

19.4mph

Backhoe

Dig Depth - Std

16.8ft in

Dig Depth - Ext

20.9ft in

Reach From Swivel - Std

20ft in

Reach From Swivel - Ext

24ft in

Load Height - Std

11.5ft in

Load Height - Ext

12.6ft in

Reach at Load Height - Std

8.3ft in

Reach at Load Height - Ext

13.2ft in

Loader

Bucket Capacity

1.6yd3

Bucket Width

96in

Lift Capacity at Full Height

5425.6lb

Clearance at Max Dump Height

9.6ft in

Dig Depth

3.8in

Dimensions

Transport Length

22.3ft in

Transport Width

7.6ft in

Transport Height

12.3ft in

Height to Top of Suspended Cab

9.2ft in

Wheelbase

7.1ft in

Ground Clearance

1.2ft in
