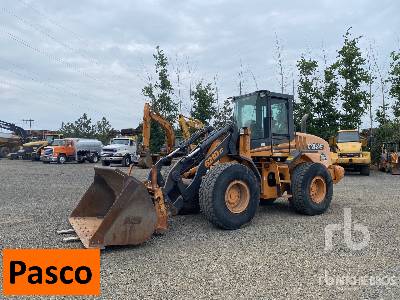

Case 621C XT Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Dimensions

B

Width Over Tires

7.98ft in

C

Height to Top of Cab

10.7ft in

D

Wheelbase

9.52ft in

E

Ground Clearance

1.4ft in

F

Hinge Pin - Max Height

12.7ft in


Specifications

Engine

Number of Cylinders

6

Engine Model

6T-590

Compression ratio

17.5:1

Net Power

130.1hp

Torque

424.8lb ft

Gross Power

139.5hp

Power Measured @

2000rpm

Displacement

359.1cu in

Torque Measured @

1400rpm

Torque Rise

31%

Aspiration

Turbocharged

Bore

4.1in

Stroke

4.8in

Operational

Operating Weight

28810.1lb

Fuel Capacity

51gal

Hydraulic System Fluid Capacity

40.5gal

Engine Oil Fluid Capacity

4gal

Cooling System Fluid Capacity

6.9gal

Transmission Fluid Capacity

2gal

Front Axle/Diff Fluid Capacity

2.6gal

Rear Axle/Diff Fluid Capacity

2.6gal

Turning Radius

17.1ft in

Operating Voltage

12V

Alternator Supplied Amperage

65amps

Tire Size

20.5 R25

Transmission

Transmission Type

Mechanical w/ electronic control

Number of Forward Gears

4

Number of Reverse Gears

3

Hydraulic System

Pump Flow Capacity

61.6gal/min

Raise Time

5.4sec

Dump Time

1.7sec

Lower Time

4.4sec

Bucket

Breakout Force

27808.9lb

Bucket Width

8.4ft in

Bucket Capacity - heaped

2.4yd3

Bucket Capacity - struck

2yd3

Dimensions

Transport width

8333.4ft in

Transport Height- Maximum

10695.6ft in

Transport Length, Maximum

23654.9ft in

Width Over Tires

8ft in

Height to Top of Cab

10.7ft in

Ground Clearance

1.4ft in

Wheelbase

9.6ft in

Hinge Pin - Max Height

12.7ft in
