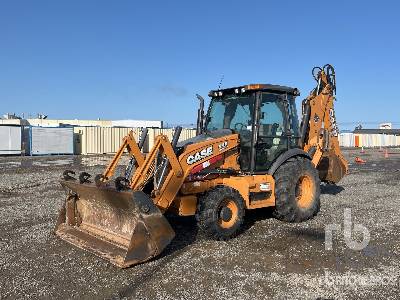

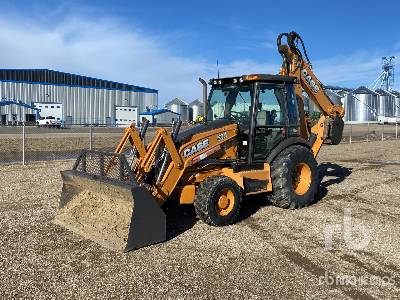

Case 590 Super N Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

13.13ft in

K

Reach From Swivel - Std

19.62ft in

L

Dig Depth - Std

15.49ft in

M

Reach at Load Height - Std

5.12ft in

Dimensions

A

Transport Length

23.79ft in

B

Transport Width

7.75ft in

C

Transport Height

11.62ft in

D

Wheelbase

6.99ft in

E

Ground Clearance

1.19ft in

Loader

G

Clearance at Max Dump Height

8.93ft in

H

Reach at Max Dump Height

2.44ft in

I

Dig Depth

6.19in


Specifications

Engine

Emissions Certification

Tier 4 Final

Fuel

Diesel

Fan

9 blade viscous suction, Ratio - 1.4:1

Radiator Core type

Square wave

Fuel tank

34.9gal

Number of Cylinders

4

Max speed

23mph

Engine Make

CASE

Engine Model

FPT F5BFL413A

Net Power

108hp

Gross Power

110hp

Power Measured @

2200rpm

Battery

850 cold-cranking amps

Torque Measured @

1400rpm

Net Torque Rise

45%

Net Max Torque

339lb ft

Aspiration

Turbocharged

Bore

3.9in

Stroke

4.4in

Displacement

207.5cu in

Capacities

Front axle

524.9cu in

Engine oil with filter

2.2gal

Fuel Tank

34.9gal

Diesel exhaust fluid (DEF) tank

3.6gal

Cooling system

4.8gal

Rear Axle

3.6gal

Operational

Backhoe Flow- gallons

43gal/min

Operating Weight 4wd

20458lb

Fuel Capacity

42.1gal

Hydraulic System Fluid Capacity

34.9gal

Oil System Fluid Capacity

3.6gal

Cooling System Fluid Capacity

4.8gal

Transmission Fluid Capacity

5.2gal

Front Axle Fluid Capacity

2.3gal

Rear Axle Fluid Capacity

3.6gal

Turning Radius

12.5ft in

Tire Size Front - 2wd / 4wd

14x17.5

Rear Tires Size 2wd/4wd

21Lx24

Operating Voltage

12V

Alternator Supplied Amperage

120amps

Performance

Dipper stick digging force

10575.3lb

Loader Bucket Heaped Capacity

1.3yd3

Boom Lift - Maximum Reach - Retracted Dipper

3688.4lb

Dipper stick Lift Capacity

6651.4lb

Arm breakout force, SAE

11442.8lb

Transmission

Transmission Type

Powershift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

24.2mph

Max Speed Reverse

15.9mph

Backhoe

Dig Depth - Std

15.5ft in

Dig Depth - Ext

19.5ft in

Reach From Swivel - Std

19.7ft in

Reach From Swivel - Ext

23.6ft in

Load Height - Std

13.2ft in

Load Height - Ext

15.8ft in

Reach at Load Height - Std

5.2ft in

Reach at Load Height - Ext

8.2ft in

Loader

Bucket Capacity

1.3yd3

Bucket Width

93in

Lift Capacity at Full Height

8203.5lb

Clearance at Max Dump Height

9ft in

Reach at Max Dump Height

2.5ft in

Dig Depth

6.2in

Tires

Front

14.0L x 17.5 (4WD)

Rear

21.0L x 24.0 (4WD)

Hydraulic

Pump Type

Variable Displacement Axial Piston

Pump Flow Capacity

43gal/min

Relief Valve Pressure

3450psi

Brakes

Service brake

Wet Multi Disc

Dimensions

Turning Radius

12.5ft in

Transport Length

23.8ft in

Transport Width

7.8ft in

Transport Height

11.7ft in

Height to Top of Suspended Cab

8.9ft in

Wheelbase

7ft in

Ground Clearance

1.2ft in

Operating Weight

21250 lbs (9639) kg (4WD)
