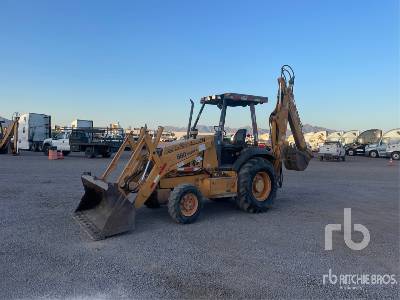

Case 580SL Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
MODEL.UNITS

Dimensions

Backhoe

J

Load Height - Std

11.2ft in

K

Reach From Swivel - Std

18.11ft in

L

Dig Depth - Std

14.5ft in

M

Reach At Load Height - Std

8.9ft in

Load At Max Lift - Std

2395lb

Bucket Dig Force - Ext

13126lb

Bucket Dig Force - Std

13126lb

Dig Depth - Ext

18.3ft in

Reach At Load Height - Ext

11.6ft in

Load At Max Lift - Ext

1603lb

Load Height - Ext

13.3ft in

Reach From Swivel - Ext

21.1ft in

Dimensions

A

Transport Length

22.7ft in

B

Transport Width

7.2ft in

C

Transport Height

19.2ft in

D

Wheelbase

7ft in

E

Ground Clearance

1.25ft in

Rear Wheel Tread Width - Min

61.2in

Height To Top Of Suspended Cab

8.1ft in

Front Wheel Tread Width

67.5in

Loader

G

Clearance At Max Dump Height

8.1ft in

H

Reach At Max Dump Height

2.31ft in

I

Dig Depth

5.9in

Bucket Breakout Force

9667lb

Bucket Width

82in

Bucket Capacity

1.01yd3

Lift Capacity At Full Height

6182lb


Specifications

Engine

Number Of Cylinders

4

Engine Make

Case

Engine Model

4T-390

Net Power

86hp

Gross Power

91hp

Power Measured @

2200rpm

Torque Measured @

1400rpm

Net Max Torque

252lb ft

Aspiration

Turbocharged

Displacement

239cu in

Bore

4.1in

Stroke

4.8in

Operational

Fuel Capacity

31.4gal

Operating Weight 4wd

13283lb

Hydraulic System Fluid Capacity

33gal

Cooling System Fluid Capacity

4.4gal

Transmission Fluid Capacity

4.9gal

Front Axle Fluid Capacity

1.5gal

Rear Axle Fluid Capacity

3.8gal

Tire Size Front - 2wd / 4wd

11L x 16, 10PR / 12 x 16.5, 8PR

Rear Tires Size 2wd/4wd

17.5L x 24, 10PR / 19.5L x 24, 10PR

Operating Voltage

12V

Alternator Supplied Amperage

65amps

Transmission

Transmission Type

Fully synchronized 4-speed forward reverse shuttle

Number Of Forward Gears

4

Number Of Reverse Gears

4

Max Speed - Forward

25.8mph

Max Speed Reverse

31.1mph

Hydraulic

Pump Type

Front mounted, positive displacement, gear-type tandem

Pump Flow Capacity

27.5gal/min

Relief Valve Pressure

2500psi
