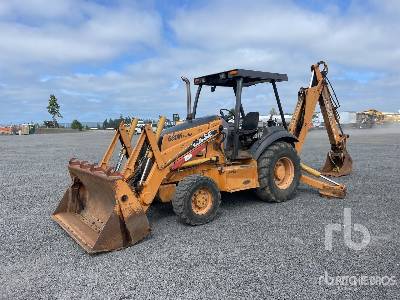

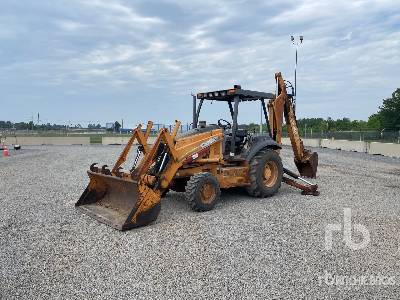

Case 580M TURBO Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
11.17ft in
K
Reach From Swivel - Std
17.83ft in
L
Dig Depth - Std
14.25ft in
M
Reach At Load Height - Std
8.75ft in
Load Height - Ext
13.25ft in
Bucket Dig Force - Ext
11212lb
Bucket Dig Force - Std
11212lb
Dig Depth - Ext
18.25ft in
Reach At Load Height - Ext
11.5ft in
Load At Max Lift - Ext
810lb
Load At Max Lift - Std
1950lb
Reach From Swivel - Ext
21.83ft in
Dimensions
A
Transport Length
23.17ft in
B
Transport Width
7.17ft in
C
Transport Height
13.67ft in
D
Wheelbase
7.04ft in
E
Ground Clearance
1.24ft in
Height To Top Of Suspended Cab
8.92ft in
Loader
G
Clearance At Max Dump Height
8.67ft in
H
Reach At Max Dump Height
2.35ft in
I
Dig Depth
7.8in
Bucket Breakout Force
9164lb
Bucket Width
82in
Bucket Capacity
0.87yd3
Lift Capacity At Full Height
6182lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2239
Engine Model
Family III 445T/M2, Tier II certified
Gross Power
85hp
Net Power
80hp
Power Measured @
2200rpm
Torque Measured @
1400rpm
Net Torque Rise
33%
Net Max Torque
246lb ft
Aspiration
turbocharged
Displacement
272cu in
Operational
Operating Weight 2wd
13359lb
Fuel Capacity
31.4gal
Max Weight
16510lb
Hydraulic System Fluid Capacity
28gal
Oil System Fluid Capacity
3.6gal
Cooling System Fluid Capacity
4.5gal
Transmission Fluid Capacity
5.5gal
Front Axle Fluid Capacity
1.5gal
Rear Axle Fluid Capacity
3.8gal
Turning Radius
21.3ft in
Tire Size Front - 2wd / 4wd
11Lx16.1/12x16.5
Rear Tires Size 2wd/4wd
17.5Lx24/19.5Lx24
Operating Voltage
12V
Alternator Supplied Amperage
90amps
Transmission
Transmission Type
4-speed synchromesh with hydraulically actuated clutches
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
24.5mph
Max Speed Reverse
29.7mph
Hydraulic
Pump Type
gear-type, transmission driven
Pump Flow Capacity
28.5gal/min
Relief Valve Pressure
3050psi
