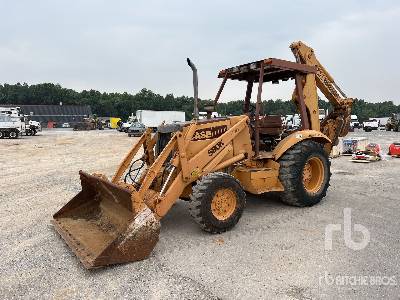

Case 580K Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

10.6ft in

K

Reach From Swivel - Std

18ft in

L

Dig Depth - Std

14.6ft in

M

Reach at Load Height - Std

6.3ft in

Dimensions

A

Transport Length

16.9ft in

B

Transport Width

6.81ft in

D

Wheelbase

7ft in

E

Ground Clearance

1.17ft in

Loader

G

Clearance at Max Dump Height

9.2ft in

H

Reach at Max Dump Height

1.75ft in

I

Dig Depth

4.2in


Specifications

Engine

Number of Cylinders

4

Engine Make

Case

Engine Model

4-390

Net Power

68.4hp

Gross Power

63.1hp

Power Measured @

2200rpm

Torque Measured @

1200rpm

Net Max Torque

186lb ft

Aspiration

Turbocharged

Bore

4.1in

Stroke

4.8in

Displacement

239cu in

Operational

Operating Weight 2wd

8785lb

Operating Weight 4wd

9185lb

Fuel Capacity

25gal

Hydraulic System Fluid Capacity

21.5gal

Oil System Fluid Capacity

2.9gal

Cooling System Fluid Capacity

4.5gal

Tire Size Front - 2wd / 4wd

11L x 16

Rear Tires Size 2wd/4wd

17.5L x 24

Operating Voltage

12V

Alternator Supplied Amperage

65amps

Transmission

Transmission Type

Fully synchronized 4-speed forward reverse shuttle

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

21.8mph

Max Speed Reverse

19.6mph

Backhoe

Dig Depth - Std

14.6ft in

Dig Depth - Ext

18.1ft in

Reach From Swivel - Std

18ft in

Reach From Swivel - Ext

21.1ft in

Bucket Dig Force - Std

9800lb

Bucket Dig Force - Ext

9800lb

Load Height - Std

10.6ft in

Load Height - Ext

12.1ft in

Reach at Load Height - Std

6.3ft in

Reach at Load Height - Ext

10ft in

Loader

Bucket Capacity

2yd3

Bucket Width

82in

Bucket Breakout Force

8100lb

Lift Capacity at Full Height

5500lb

Clearance at Max Dump Height

9.2ft in

Reach at Max Dump Height

1.8ft in

Dig Depth

4.2in

Hydraulic

Pump Type

Front mounted, positive displacement, gear-type tandem

Pump Flow Capacity

26gal/min

Relief Valve Pressure

2550psi

Dimensions

Front Wheel Tread Width

67.5in

Rear Wheel Tread Width - min

62in

Transport Length

16.9ft in

Transport Width

6.9ft in

Height to Top of Suspended Cab

9ft in

Wheelbase

7ft in

Ground Clearance

1.2ft in
