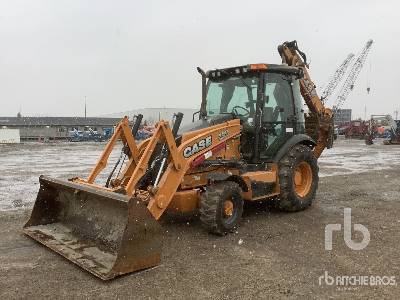

Case 580 Super N Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

12.05ft in

K

Reach From Swivel - Std

18.21ft in

L

Dig Depth - Std

14.47ft in

M

Reach at Load Height - Std

4.63ft in

Dimensions

A

Transport Length

23.43ft in

B

Transport Width

7.12ft in

C

Transport Height

10.8ft in

D

Wheelbase

7.06ft in

E

Ground Clearance

1ft in

F

Height to Top of Cab

105.52in

Loader

G

Clearance at Max Dump Height

8.83ft in

H

Reach at Max Dump Height

2.63ft in

I

Dig Depth

172.05in


Specifications

Engine

Emissions Certification

Tier 4 Final

Fuel

Diesel

Fan

9 blade suction , Ratio- 1.4:1

Horsepower - Gross

96.6hp

Horsepower -Net

95.3hp

Battery

850 cold-cranking amps

Fuel tank

34.9gal

Number of Cylinders

4

Max speed

23.6mph

Engine Make

2239

Engine Model

FPT F5BFL413B

Gross Power

97hp

Net Power

95hp

Net Torque

334.2lb ft

Power Measured @

2200rpm

Max Torque

334.2lb ft

Torque Measured @

1400rpm

Net Torque Rise

45%

Net Max Torque

328lb ft

Aspiration

Turbocharged

Bore

3.9in

Stroke

4.4in

Alternator

160amps

Displacement

207.5cu in

Capacities

Front axle

469.9cu in

Engine oil with filter

2.2gal

Fuel Tank

34.9gal

Diesel exhaust fluid (DEF) tank

3.6gal

Rear Axle

3.6gal

Cooling System

4.8gal

Operational

Backhoe Flow- gallons

41.3gal/min

Operating Weight 2wd

16239lb

Operating Weight 4wd

17226lb

Fuel Capacity

42.1gal

Hydraulic System Fluid Capacity

31.5gal

Oil System Fluid Capacity

3.6gal

Cooling System Fluid Capacity

4.8gal

Transmission Fluid Capacity

5.3gal

Front Axle Fluid Capacity

2.1gal

Rear Axle Fluid Capacity

3.6gal

Turning Radius

11ft in

Tire Size Front - 2wd / 4wd

11L x 16 / 12 x 16.5

Rear Tires Size 2wd/4wd

19.5L x 24

Operating Voltage

12V

Alternator Supplied Amperage

120amps

Performance

Loader Bucket Heaped Capacity

1.1yd3

Dipper stick digging force

8657lb

Dipper stick Lift Capacity

5822.5lb

Boom Lift - Maximum Reach - Retracted Dipper

2837.4lb

Bucket digging force (ISO)

135.3lb

Arm breakout force, SAE

11150.6lb

Transmission

Transmission Type

Power shuttle syncromesh

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

24mph

Max Speed Reverse

28.8mph

Backhoe

Dig Depth - Std

14.5ft in

Dig Depth - Ext

18ft in

Reach From Swivel - Std

18.3ft in

Reach From Swivel - Ext

21.6ft in

Load Height - Std

12.1ft in

Load Height - Ext

14.4ft in

Reach at Load Height - Std

4.7ft in

Reach at Load Height - Ext

7.3ft in

Loader

Bucket Capacity

1.1yd3

Bucket Width

82in

Lift Capacity at Full Height

7043.8lb

Clearance at Max Dump Height

8.9ft in

Reach at Max Dump Height

2.7ft in

Dig Depth

172.1in

Tires

Front

12L x 16.5 (4WD)

Rear

17.5 L24 (4WD)

Hydraulic

Pump Type

Variable Displacement Axial Piston

Pump Flow Capacity

40gal/min

Relief Valve Pressure

3450psi

Brakes

Service brake

Wet Disc

Dimensions

Height to top of cab

105.6in

Turning Radius

11.4ft in

Transport Length

23.5ft in

Transport Width

7.2ft in

Transport Height

10.8ft in

Wheelbase

7.1ft in

Ground Clearance

1ft in

Operating Weight

17838 Ibs (8141) kg (4WD)


Compare similar models

Manufacturer / Model

Net Power

Dig Depth - Std

Net Power

95.3 hp

Dig Depth - Std

14.9 ft in

Net Power

95 hp

Dig Depth - Std

14.6 ft in

Net Power

95 hp

Dig Depth - Std

14.1 ft in
`
