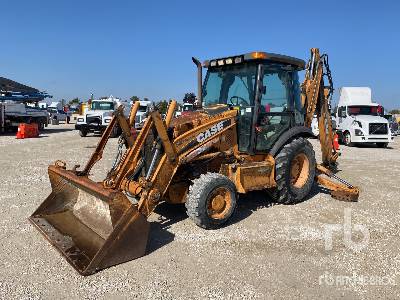

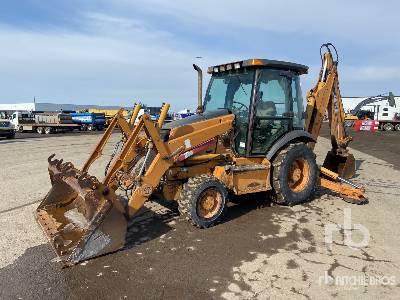

Case 580 Super M+ Loader Backhoe

Case 580 Super M+ Loader Backhoe Specs front
Case 580 Super M+ Loader Backhoe Specs front
Case 580 Super M+ Loader Backhoe Specs side
Case 580 Super M+ Loader Backhoe Specs side
Case 580 Super M+ Loader Backhoe Specs extended
Case 580 Super M+ Loader Backhoe Specs extended
Units

Dimensions

Backhoe

J

Load Height - Std

11.17 ft in

K

Reach From Swivel - Std

18.08 ft in

L

Dig Depth - Std

14.42 ft in

M

Reach at Load Height - Std

8.75 ft in

Dimensions

A

Transport Length

22.83 ft in

B

Transport Width

7.75 ft in

C

Transport Height

14.33 ft in

D

Wheelbase

7.04 ft in

E

Ground Clearance

1.21 ft in

Loader

G

Clearance at Max Dump Height

9.17 ft in

H

Reach at Max Dump Height

2.5 ft in

I

Dig Depth

1.3 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2239

Engine Model

Family III 445T/M2, Tier II certified

Gross Power

95 hp

Net Power

90 hp

Power Measured @

2200 rpm

Torque Measured @

1500 rpm

Net Torque Rise

29 %

Net Max Torque

289 lb ft

Aspiration

turbocharged

Displacement

272 cu in

Operational

Operating Weight 2wd

14905 lb

Max Weight

18128 lb

Fuel Capacity

42 gal

Hydraulic System Fluid Capacity

31.5 gal

Oil System Fluid Capacity

3.6 gal

Cooling System Fluid Capacity

4.8 gal

Transmission Fluid Capacity

5.5 gal

Front Axle Fluid Capacity

2 gal

Rear Axle Fluid Capacity

3.8 gal

Turning Radius

11.3 ft in

Tire Size Front - 2wd / 4wd

14.5x16.1/12.5x16.5

Rear Tires Size 2wd/4wd

21Lx24/21Lx24

Operating Voltage

12 V

Alternator Supplied Amperage

90 amps

Backhoe

Dig Depth - Std

14.5 ft in

Dig Depth - Ext

18.3 ft in

Reach From Swivel - Std

18.1 ft in

Reach From Swivel - Ext

21.9 ft in

Bucket Dig Force - Std

12821 lb

Bucket Dig Force - Ext

12821 lb

Load at Max Lift - Std

2750 lb

Load at Max Lift - Ext

1350 lb

Load Height - Std

11.2 ft in

Load Height - Ext

13.3 ft in

Reach at Load Height - Std

8.8 ft in

Reach at Load Height - Ext

11.5 ft in

Transmission

Transmission Type

4-speed synchromesh with hydraulically actual clutches

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

26.5 mph

Max Speed Reverse

32 mph

Loader

Bucket Capacity

1.1 yd3

Bucket Width

93 in

Bucket Breakout Force

9164 lb

Lift Capacity at Full Height

6182 lb

Clearance at Max Dump Height

9.2 ft in

Reach at Max Dump Height

2.5 ft in

Dig Depth

1.3 in

Hydraulic

Pump Type

Gear-type tandem, transmission driven

Pump Flow Capacity

38 gal/min

Relief Valve Pressure

3050 psi

Dimensions

Transport Length

22.9 ft in

Transport Width

7.8 ft in

Transport Height

14.4 ft in

Height to Top of Suspended Cab

9 ft in

Wheelbase

7.1 ft in

Ground Clearance

1.3 ft in
