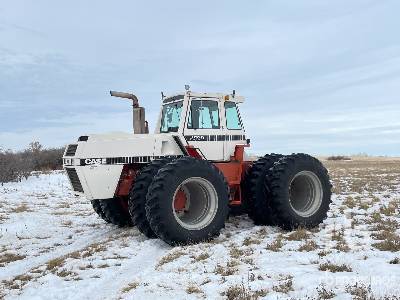

Case 4890 4WD Tractor
Units
Dimensions
Dimensions
A
Overall Length
242.92in
B
Width Outside Frame
8.24ft in
D
Wheelbase
109.85in
E
Ground Clearance
17.72in
Specifications
Engine
Number Of Cylinders
6
Engine Make
Saab-Scania
Gross Power
300hp
Pto Power
253hp
Power Measured @
2200rpm
Displacement
671.3cu in
Bore
5in
Stroke
5.8in
Aspiration
Turbocharged
Operational
Fuel Capacity
150gal
Operating Weight
25750lb
Hydraulic System Fluid Capacity
24gal
Cooling System Fluid Capacity
11gal
Engine Oil Capacity
7.2gal
3 Point Hitch Type
III
Front Tire Size
18.4-34
Rear Tire Size
18.4-34
3 Point Hitch Lift Capacity @ 24 Inches
12750lb
Operating Voltage
12V
Alternator Supplied Amperage
72amps
Transmission
Transmission Type
Partial power shift
Number Of Forward Gears
12
Number Of Reverse Gears
4
Max Speed - Forward
17.4mph
Max Speed - Reverse
17.4mph
Hydraulic System
Hydraulic System Type
Closed center PFC
Pump Flow Capacity
31gal/min
Relief Valve Pressure
2250psi
