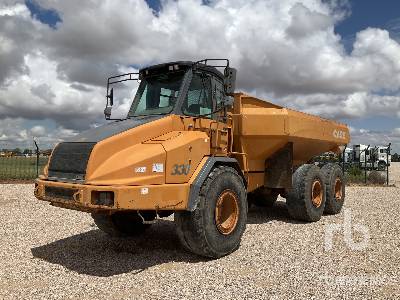

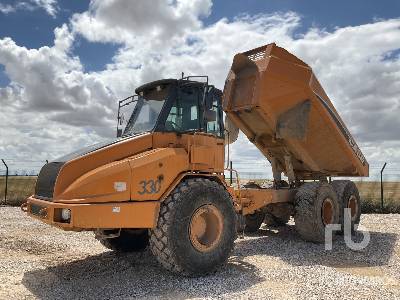

Case 340B Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Units

Dimensions

Dimensions

A

Overall Length

35.33ft in

B

Overall Width

10.92ft in

C

Overall Height

12.58ft in

D

Wheelbase

20.57ft in

E

Ground Clearance

1.92ft in

F

Dump Height

22.67ft in

G

Dump Ground Clearance

3.21ft in

Dump

H

Dump Angle

68degrees


Specifications

Engine

Number of Cylinders

6

Engine Make

2239

Engine Model

Family IV 13 liter Tier III certified

Gross Power

456hp

Net Power

426hp

Power Measured @

2000rpm

Displacement

787cu in

Max Torque

1475.2lb ft

Torque Measured @

1000rpm

Aspiration

Turbocharged with Aftercooler

Operational

Fuel Capacity

119gal

Hydraulic System Fluid Capacity

79.3gal

Engine Oil Capacity

9.2gal

Transmission Fluid Capacity

9.4gal

Operating Voltage

24V

Alternator Supplied Amperage

90amps

Tire Size

Tubeless 29.5 R25

Transmission

Transmission Type

Powershift

Number of Forward Gears

6

Number of Reverse Gears

3

Max Speed

29.8mph

Weights

Front Axle - empty

31614lb

Rear Axle - empty

16160lb

Total Empty

63934lb

Total Loaded

143300lb

Dump

Rated Payload

79366lb

Capacity - Struck

22.2yd3

Capacity - Heaped

28.8yd3

Dump Angle

68degrees

Raise Time

11sec

Lower Time

13sec

Dimensions

Overall Length

35.4ft in

Overall Width

11ft in

Overall Height

12.6ft in

Wheelbase

20.6ft in

Ground Clearance

2ft in

Dump Height

22.7ft in

Dump Ground Clearance

3.3ft in
