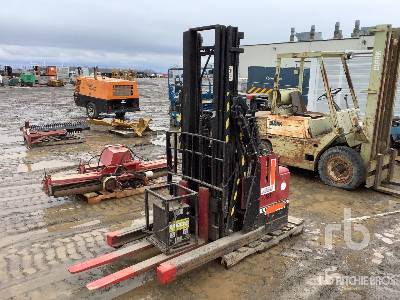

BT C4E500V Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
9.09ft in
B
Overall Width
4.99ft in
C
Overall Height - Mast Lowered
8.04ft in
D
Wheelbase
5.94ft in
E
Ground Clearance
5.91in
F
Height To Top Of Overhead Guard
8.04ft in
G
Max Fork Height
10.34ft in
Turning Radius
7.92ft in
Mast
H
Mast Tip Forward
2.3degrees
I
Mast Tip Rear
10degrees
Lower Speed
118.12ft/min
Load Capacity
10802.66lb
Load Center
19.69in
Lift Speed
85.64ft/min
Specifications
Engine
Power
22.8hp
Fuel Type
electric
Operational
Operating Weight
16909.5lb
Tire Type
front 7.00-15 rear 23x9-10
Number Of Front Wheels
2-4
Number Of Rear Wheels
2
Max Speed
10.6mph
