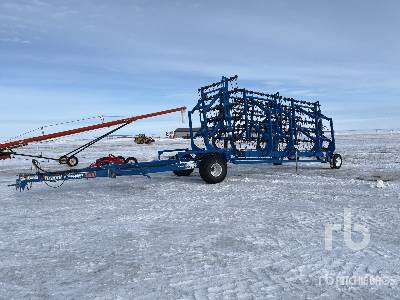

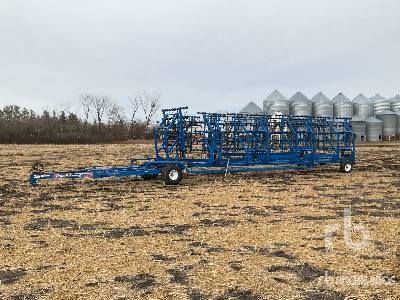

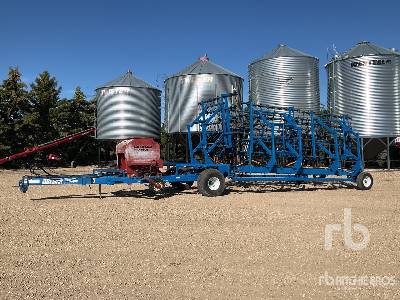

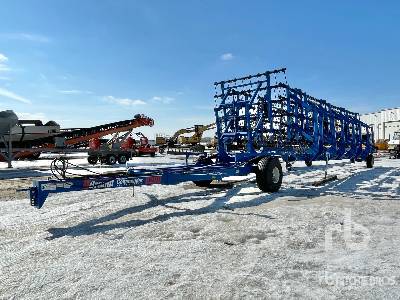

Brandt Contour Commander 32 Harrow

Harrow
Harrow
Harrow
Harrow
Harrow
Harrow
MODEL.UNITS

Dimensions

Dimensions

A

Overall Length

36.17in

B

Transport Width

9.25ft in

C

Transport Height

12.5ft in

Wing Tires

9.5L x 15

Pto Power Required Per Width Ft.

3hp

Max Weight

8860lb

Main Frame Tires

16.5L x 16.1


Specifications

Frame

Working Width

32ft in

Main Beam Size

8\" x 8\", 3/16\" wall

Frame Clearance - Wing

28in

Harrow

Tine Adjustment

Hydraulic (Standard)

Tine Size

0.6in

Tine Spacing

2.4in

Section Width

2 @ 6\' & 2 @ 10\'

Number Of Bars

5

Down Pressure

1540lb

Tine Angle - Min

45degrees

Tine Angle - Max

90degrees
