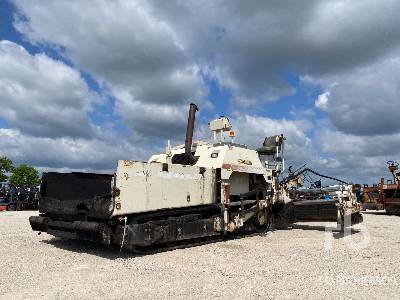

Bomag CR562 Asphalt Paver
Units
Dimensions
Dimensions
B
Transport Width
7.5ft in
C
Transport Height
9.17ft in
D
Wheelbase
10.67ft in
Overall Length
489in
Track Width
18in
Specifications
Screed
Screed Plate Thickness
0.5in
Positive Crown
3in
Negative Crown
1in
Vibrations Per Minute (Max)
3000
Stretch® 16 (Electric Heat) Generator
45.6hp
Stretch® 16 (Four Oil Heaters) 274,000 Btu (Total)
2.0 gph
Fastach® 8 (Electric Heat) Generator
45.6hp
Fastach® 8 (Two Oil Heaters) 178,000 Btu
1.3 gph
Engine
Emission Tier Level
Tier 4F
Engine Make
Cummins
Engine Model
QSB6.7
Gross Power
260hp
Power Measured @
2200rpm
Aspiration
Turbocharged
Operational
Fuel Capacity
82gal
Hydraulic System Fluid Capacity
75gal
Cooling System Fluid Capacity
6.5gal
Operating Voltage
12V
Hopper/Paver
Hopper Capacity
30000.1lb
Hopper Volume
9.9yd3
Hopper Width
118.7in
Slat Conveyor Liner Thickness
0.4in
Auger Construction
Cast , High alloy
Paving Width - Std
10.4ft in
Paving Depth - Max
12.1in
Feed Tunnel Width
30in
Hopper Length
90in
Auger Thickness
0.7in
Paving Width - Max
30ft in
Paving Speed - Max
242ft/min
Travel Speed - Max
9.6mph
Auger Diameter
16in
Weights
Tractor Weight - With Fastach® 8 And Hydroflated Tires
40415lb
Tractor Weight - With Stretch 16 And Hydroflated Tires
44315lb
Tractor Weight
36415lb
Brakes
Parking Brake
Multiple disc
