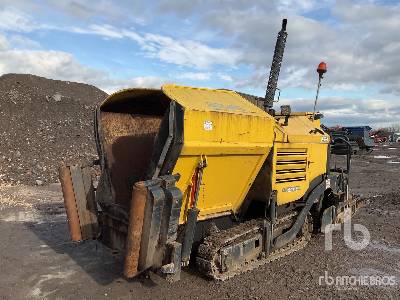

Bomag CR362L Asphalt Paver

Asphalt Paver
Asphalt Paver
Asphalt Paver
Asphalt Paver
Asphalt Paver
Asphalt Paver
Units

Dimensions

Dimensions

B

Transport Width

9.17ft in

D

Wheelbase

8.26ft in


Specifications

Screed

Screed plate thickness

0.5in

Positive crown

3in

Negative crown

1in

Vibrations per minute (max)

3000

Stretch® 16 (electric heat) generator

26.9hp

Stretch® 16 (four oil heaters) 274,000 BTU (total)

2.0 gph

Fastach® 8 (electric heat) generator

26.9hp

Fastach® 8 (two oil heaters) 178,000 BTU

1.3 gph

Engine

Emission Tier Level

Tier 3

Engine Make

Cummins

Engine Model

QSB4.5

Gross Power

160hp

Power Measured @

2200rpm

Aspiration

Turbocharged

Operational

Fuel Capacity

62gal

Hydraulic System Fluid Capacity

50gal

Cooling System Fluid Capacity

6gal

Operating Voltage

12V

Hopper/Paver

Hopper Capacity

20000.1lb

Slat Conveyor Liner Thickness

0.4in

Paving Depth - max

12.1in

Feed Tunnel Width

25in

Hopper Width

118in

Hopper Volume

5.9yd3

Auger Construction

Cast , High alloy

Auger Thickness

0.7in

Hopper Length

70in

Paving Width - max

20ft in

Paving Speed - max

250ft/min

Travel Speed - max

8.8mph

Auger Diameter

14in

Weights

Tractor Weight

27950lb

Tractor Weight - with Stretch 16 and hydroflated tires

31450lb

Tractor Weight - with Fastach® 8 and hydroflated tires

28760lb

Brakes

Parking brake

Multiple disc

Dimensions

Overall Length

446in

Transport Width

9.2ft in

Track Width

10in

Wheelbase

8.3ft in
